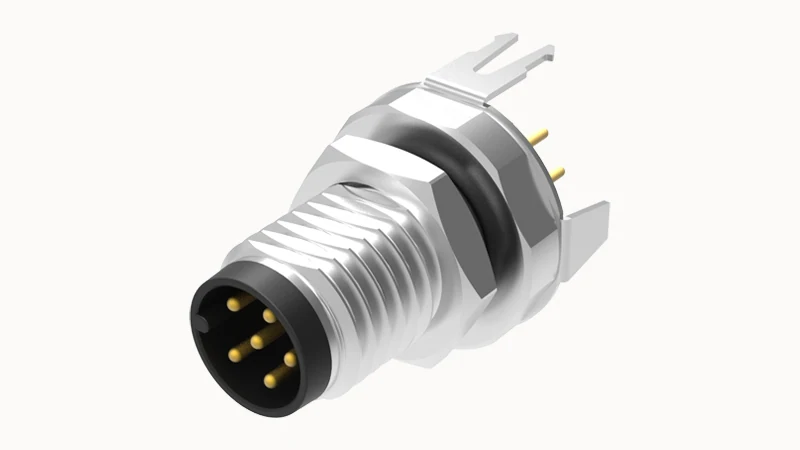

Product image is temporarily unavailableProduct appearance · configuration depends on the selected modelEnlarge image
Circular connectors
Circular connectors SPSH-M8A-06P-MM-SF7003 · Contact count: 6
General parameters · Number of potentials: 6 · General parameters · Connection method: Soldering pin
Quotation and selection support
- Model
- SPSH-M8A-06P-MM-SF7003
- General parameters · Number of potentials
- 6
- General parameters · Connection method
- Soldering pin
- Environmental conditions · IP class
- IP67
- General parameters · Rated current
- 1.5A
Product overview
SPSH-M8A-06P-MM-SF7003. Circular connectors. Number of potentials: 6; Connection method: Soldering pin; IP class: IP67.
Use the complete SPSH-M8A-06P-MM-SF7003 ordering code and review the interface, installation and rating conditions below.
Discuss this product requirementProduct features
General parameters · Connection method
Soldering pin
Environmental conditions · IP class
IP67
General parameters · Rated current
1.5A
General parameters · Insulation resistance
≥ 100 MΩ
Product images
Technical specifications
Product identification
| Manufacturer order number | 20020000757 |
|---|
Mechanical & connection
| General parameters · Number of potentials | 6 |
|---|---|
| General parameters · Connection method | Soldering pin |
| General parameters · Torque | 0.3 Nm ... 0.4 Nm |
Electrical & signal
| General parameters · Rated current | 1.5A |
|---|---|
| General parameters · Insulation resistance | ≥ 100 MΩ |
| General parameters · Overvoltage level | Ⅰ |
| UL parameters · Rated voltage | 30V |
| UL parameters · Rated current | 1.5A |
Materials & finish
| Material · Flammability rating according to UL94 | V0 |
|---|---|
| Material · Contact material | CuZn |
| Material · Material contact surface | Au |
| Material · Contact carrier material | PA |
| Material · Coil material | Copper alloy, nickel plated |
| Material · Sealing material | Silicon |
Other specifications
| Environmental conditions · IP class | IP67 |
|---|---|
| General parameters · Error-proof coding | A-Code |
| General parameters · Pollution level | 3 |
| General parameters · Insertion and pullout cycle | ≥ 100 |
| General parameters · Type of installation | Rear board installation |
| Standards and specifications · Standards and specifications | IEC 61076-2-104 |
