General parameters · Number of potentials
3
Circular connectors

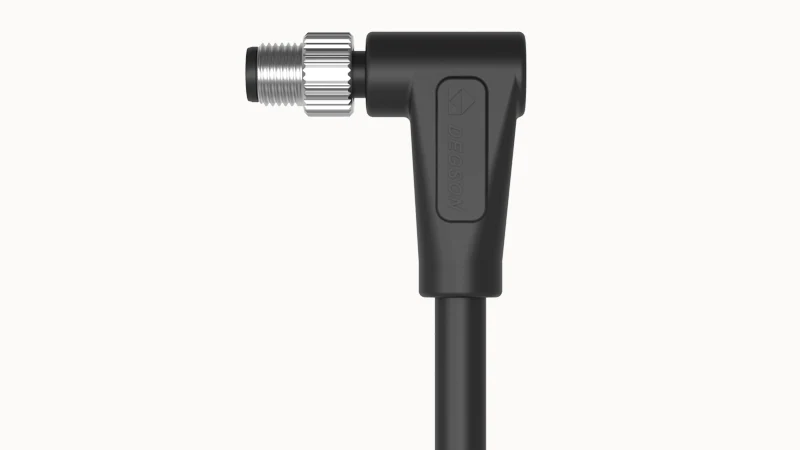

Product image is temporarily unavailableProduct appearance · configuration depends on the selected modelEnlarge image
Circular connectors
Circular connectors PM-M5A-03P-MM-SR7B01 · Contact count: 3
General parameters · Number of potentials: 3 · Environmental conditions · Ambient temperature: -25℃...80℃
Quotation and selection support
- Model
- PM-M5A-03P-MM-SR7B01
- General parameters · Number of potentials
- 3
- Environmental conditions · Ambient temperature
- -25℃...80℃
- Environmental conditions · IP class
- IP67
- General parameters · Rated current
- 1A
Product overview
PM-M5A-03P-MM-SR7B01. Circular connectors. Number of potentials: 3; Ambient temperature: -25℃...80℃; IP class: IP67.
Use the complete PM-M5A-03P-MM-SR7B01 ordering code and review the interface, installation and rating conditions below.
Discuss this product requirementProduct features
Environmental conditions · Ambient temperature
-25℃...80℃
Environmental conditions · IP class
IP67
General parameters · Rated current
1A
General parameters · Insulation resistance
≥ 100 MΩ
Product images
Technical specifications
Product identification
| Manufacturer order number | 20010000037 |
|---|
Mechanical & connection
| General parameters · Number of potentials | 3 |
|---|---|
| General parameters · Torque | 0.4 Nm |
Electrical & signal
| General parameters · Rated current | 1A |
|---|---|
| General parameters · Insulation resistance | ≥ 100 MΩ |
| General parameters · Overvoltage level | Ⅱ |
| Cable · Insulation resistance | ≥100MΩ |
| Cable · Conductor resistance | Maximum 150Ω/km (at 20 °C) ) |
| Cable · Nominal cable voltage | 300V |
Wire & cable
| Cable · Cable type | PUR Black |
|---|---|
| Cable · Cable type(abbreviation) | PUR |
| Cable · UL AWM form | UL20549 |
| Cable · Cross section | 0.14mm² |
| Cable · AWG signal wire | 26AWG |
| Cable · Wire structure Signal wire | 19/0.10mm² |
| Cable · Core diameter (including insulation layer) | 1.00±0.05mm |
| Cable · Wire color | 1 Brown 3 Blue 4 Black |
| Cable · Thickness, insulation | 0.38mm |
| Cable · Cable outer diameter D | 3.5 ±0.2mm |
| Cable · Flame retardant | Comply with UL 758/1581 FT2 standard |
| Cable · Halogen free | No |
| Dimension · Cable length | 1m |
Materials & finish
| Material · Flammability rating according to UL94 | V0 |
|---|---|
| Material · Contact material | CuZn |
| Material · Material contact surface | Au |
| Material · Contact carrier material | PU |
| Material · Fixture body material | TPU |
| Material · Coil material | Copper alloy, nickel plated |
| Material · Sealing material | Silicon |
| Cable · Outer sheath, material | PU |
| Cable · Conductor insulation material | PVC |
| Cable · Conductor material | Tinned copper |
Environmental conditions
| Environmental conditions · Ambient temperature | -25℃...80℃ |
|---|
Other specifications
| Environmental conditions · IP class | IP67 |
|---|---|
| General parameters · Error-proof coding | A-Code |
| General parameters · Pollution level | 3 |
| General parameters · Insertion and pullout cycle | ≥ 100 |
| Standards and specifications · Standards and specifications | IEC 61076-2-105 |
Drawings & technical files
PM-M5A-03P-MM-SR7B01 drawing request
After selecting the connection configuration, review its dimensions, pin assignment and installation requirements. Include the required configuration in your request.
Request this product drawingSelection questions
How many positions or contacts are specified?
General parameters · Number of potentials: 3. Where a range or multiple options are shown, select the required count and pin assignment.
What is specified for Environmental conditions · Ambient temperature?
Environmental conditions · Ambient temperature: -25℃...80℃.
What is specified for Environmental conditions · IP class?
Environmental conditions · IP class: IP67.
What current values and conditions apply?
General parameters · Rated current: 1A. Keep each value with its stated standard, class and test condition.
