Rated current
1A
DC power jack

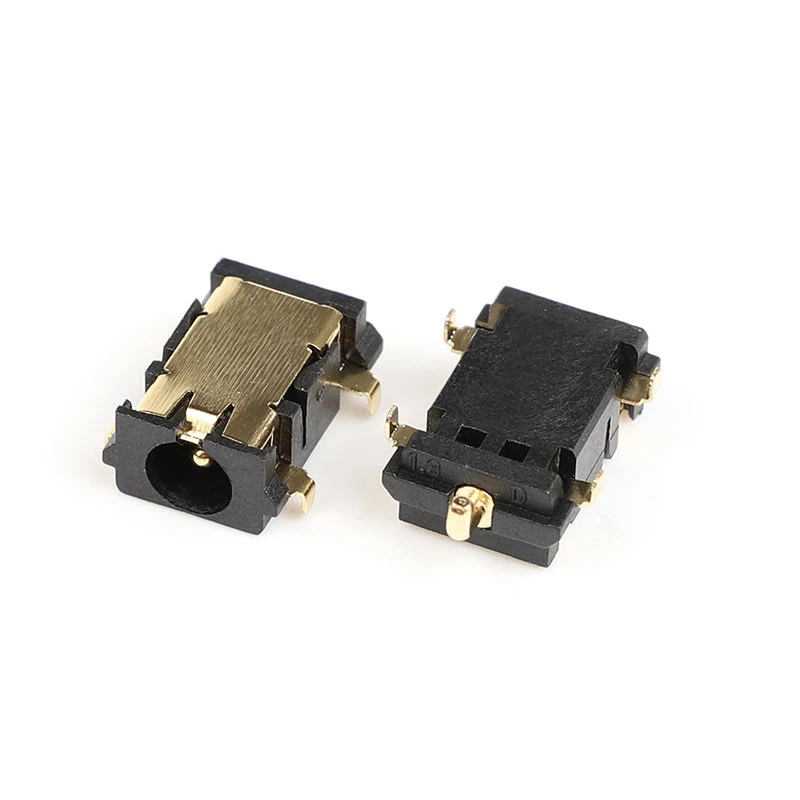

Product image is temporarily unavailableProduct appearance · configuration depends on the selected modelEnlarge image
Power & energy connectors
DC power jack · Contact count: 5 Pins
Series specification range: Rated current: 1A · Rated voltage: 30V
Quotation and selection support
- Rated current
- 1A
- Rated voltage
- 30V
- Pin
- 5 Pins
- Gender
- Female
Parameters may cover a series or several configurations. Confirm ratings for the selected contact count, dimensions and termination.
Product overview
DC power jack. DC power jack. Series configuration parameters: Rated current: 1A; Rated voltage: 30V; Pin: 5 Pins.
Discuss this product requirementProduct features
Rated voltage
30V
Pin
5 Pins
Gender
Female
Material
Brass
Product images
Technical specifications
Parameters may cover a series or several configurations. Confirm ratings for the selected contact count, dimensions and termination.
Mechanical & connection
| Gender | Female |
|---|---|
| Pin | 5 Pins |
| Insertion / Extraction Force | 3-25N |
| Durability | 5000cycles |
Electrical & signal
| Rated current | 1A |
|---|---|
| Rated voltage | 30V |
| Current rating | 1A |
| Voltage rating | 30V |
| Contact resistance | 30mΩ Max |
| Insulation resistance | 100mΩ/Min |
Materials & finish
| Material | Brass |
|---|
Environmental conditions
| Operating temperature | -30℃~+70℃ |
|---|
Drawings & technical files
DC power jack drawing request
After selecting the connection configuration, review its dimensions, pin assignment and installation requirements. Include the required configuration in your request.
Request this product drawingSelection questions
What current values and conditions apply?
Rated current: 1A; Current rating: 1A. Keep each value with its stated standard, class and test condition.
What voltage values and standards apply?
Rated voltage: 30V; Voltage rating: 30V. Keep each value with its stated standard, class and test condition.
How many positions or contacts are specified?
Pin: 5 Pins. Where a range or multiple options are shown, select the required count and pin assignment.
What is specified for Gender?
Gender: Female.
