Current rating
DC 30V 0.5A
DC power jack

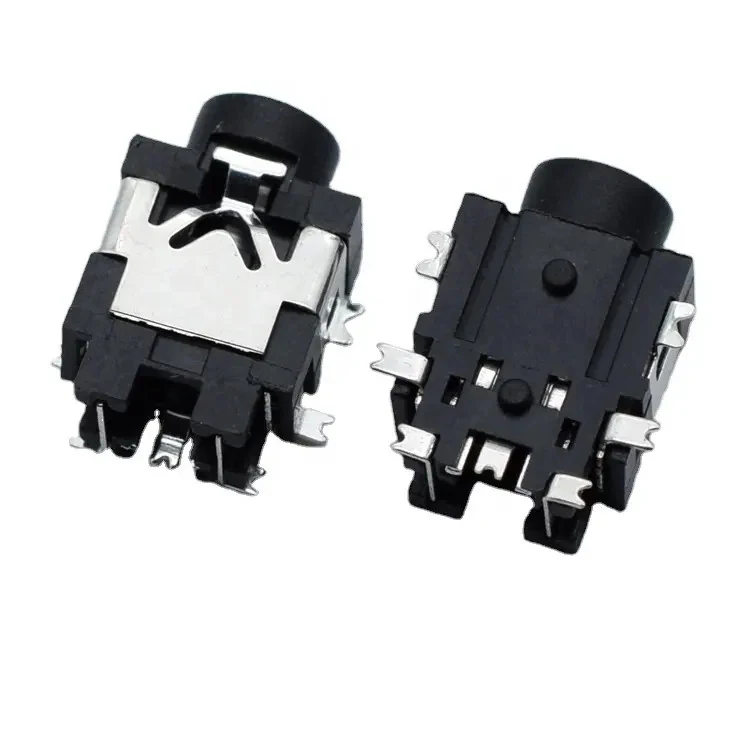

Product image is temporarily unavailableProduct appearance · configuration depends on the selected modelEnlarge image
Power & energy connectors
DC power jack · Contact count: 7
Series specification range: Current rating: DC 30V 0.5A · Withstand voltage: 500V AC for 1Min
Quotation and selection support
- Current rating
- DC 30V 0.5A
- Withstand voltage
- 500V AC for 1Min
- Waterproof Rating
- IP67
- Positions / contacts
- 7
Parameters may cover a series or several configurations. Confirm ratings for the selected contact count, dimensions and termination.
Product overview
DC power jack. DC power jack. Series configuration parameters: Current rating: DC 30V 0.5A; Withstand voltage: 500V AC for 1Min; Waterproof Rating: IP67.
Discuss this product requirementProduct features
Withstand voltage
500V AC for 1Min
Waterproof Rating
IP67
Positions / contacts
7
Operating Temperature Range
-30~70℃
Product images
Technical specifications
Parameters may cover a series or several configurations. Confirm ratings for the selected contact count, dimensions and termination.
Mechanical & connection
| Unmating Force | 3~20N |
|---|---|
| Insertion force | 3-20N |
| Positions / contacts | 7 |
Electrical & signal
| Insulation resistance | ≥100MΩ |
|---|---|
| Current rating | DC 30V 0.5A |
| Contact resistance | 50mΩ MAX. |
| Insulation resistance | ≥ 100mΩ |
| Withstand voltage | 500V AC for 1Min |
Environmental conditions
| Operating Temperature Range | -30~70℃ |
|---|---|
| Waterproof Rating | IP67 |
Drawings & technical files
DC power jack drawing request
After selecting the connection configuration, review its dimensions, pin assignment and installation requirements. Include the required configuration in your request.
Request this product drawingSelection questions
What current values and conditions apply?
Current rating: DC 30V 0.5A. Keep each value with its stated standard, class and test condition.
What voltage values and standards apply?
Withstand voltage: 500V AC for 1Min. Keep each value with its stated standard, class and test condition.
Which protection rating is specified?
Waterproof Rating: IP67. Assembly, seals and mating conditions must match the selected configuration's drawing.
How many positions or contacts are specified?
Positions / contacts: 7. Where a range or multiple options are shown, select the required count and pin assignment.
