Electrical parameters · Rated current
350A
Energy storage connector
Product image is temporarily unavailableProduct appearance · configuration depends on the selected modelEnlarge image
Power & energy connectors
Energy storage connector ESP-350A-120-BK-00
Electrical parameters · Rated current: 350A · UL Electrical parameters · Rated voltage: 1500V
Quotation and selection support
- Model
- ESP-350A-120-BK-00
- Electrical parameters · Rated current
- 350A
- UL Electrical parameters · Rated voltage
- 1500V
- Wiring data · Cable sectional area
- 4/0AWG(120mm²）
- Overview · Insulation materials
- PA
Product overview
ESP-350A-120-BK-00. Energy storage connector. Rated current: 350A; Rated voltage: 1500V; Cable sectional area: 4/0AWG(120mm²）.
Use the complete ESP-350A-120-BK-00 ordering code and review the interface, installation and rating conditions below.
Discuss this product requirementProduct features
UL Electrical parameters · Rated voltage
1500V
Wiring data · Cable sectional area
4/0AWG(120mm²）
Overview · Insulation materials
PA
Overview · Flammability rating according to UL94
V0

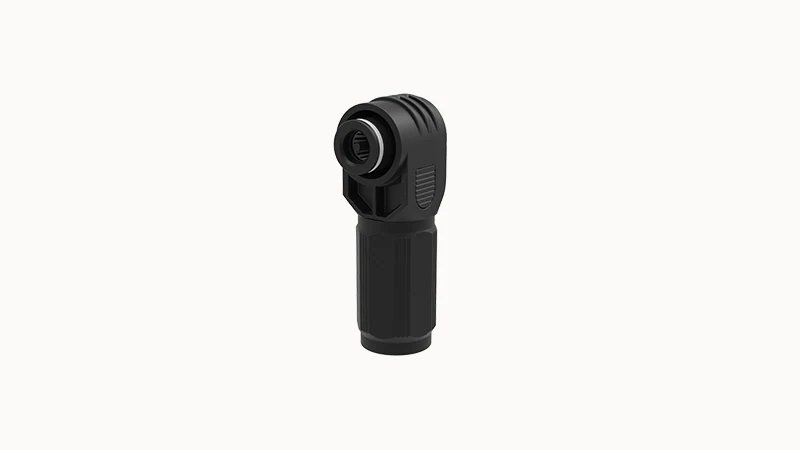

Product images
Technical specifications
Product identification
| Manufacturer order number | 28010000015 |
|---|
Electrical & signal
| UL Electrical parameters · Rated voltage | 1500V |
|---|---|
| Electrical parameters · Rated current | 350A |
| Electrical parameters · Insulation resistance | >5000MΩ |
| Electrical parameters · Contact resistance | ≤0.5mΩ |
| TUV parameters · Rated voltage | 1500V / 1500V / 1500V |
| TUV parameters · Rated current | 350A / 350A / 350A |
| UL parameters · Rated voltage | 1500V / 1500V / 1500V |
| UL parameters · Rated current | 350A / 350A / 350A |
Wire & cable
| Wiring data · Cable sectional area | 4/0AWG(120mm²） |
|---|
Materials & finish
| Overview · Insulation materials | PA |
|---|---|
| Overview · Color | black |
| Material data · Clamping ring material | Silicone |
| Material data · O-ring material | Silicone |
| Material data · Contact material | Copper alloy |
Environmental conditions
| Environmental conditions · Operating ambient temperature (including temperature rise) | -40℃-125℃ |
|---|
Other specifications
| Overview · Flammability rating according to UL94 | V0 |
|---|---|
| Technical specification · IP class | IP67 |
| TUV parameters · AWG | 4/0AWG(120mm²) / 4/0AWG(120mm²) / 4/0AWG(120mm²) |
| UL parameters · AWG | 4/0AWG(120mm²) / 4/0AWG(120mm²) / 4/0AWG(120mm²) |
Drawings & technical files
ESP-350A-120-BK-00 drawing request
After selecting the connection configuration, review its dimensions, pin assignment and installation requirements. Include the required configuration in your request.
Request this product drawingSelection questions
What current values and conditions apply?
Electrical parameters · Rated current: 350A; TUV parameters · Rated current: 350A / 350A / 350A; UL parameters · Rated current: 350A / 350A / 350A. Keep each value with its stated standard, class and test condition.
What voltage values and standards apply?
UL Electrical parameters · Rated voltage: 1500V; TUV parameters · Rated voltage: 1500V / 1500V / 1500V; UL parameters · Rated voltage: 1500V / 1500V / 1500V. Keep each value with its stated standard, class and test condition.
What is specified for Wiring data · Cable sectional area?
Wiring data · Cable sectional area: 4/0AWG(120mm²）.
What is specified for Overview · Insulation materials?
Overview · Insulation materials: PA.
Confirm the configuration. Get a quote.
Share the model or required specification, quantity and delivery target.
