Current
Up To 480A
Energy storage connector
Product image is temporarily unavailableProduct appearance · configuration depends on the selected modelEnlarge image
Power & energy connectors
Energy storage connector
Series specification range: Current: Up To 480A · Voltage: Up To 6000V
Quotation and selection support
- Current
- Up To 480A
- Voltage
- Up To 6000V
- Waterproof
- IP67
- Shell material
- PA66
Parameters may cover a series or several configurations. Confirm ratings for the selected contact count, dimensions and termination.
Product overview
Energy storage connector. Energy storage connector. Series configuration parameters: Current: Up To 480A; Voltage: Up To 6000V; Waterproof: IP67.
Discuss this product requirementProduct features
Voltage
Up To 6000V
Waterproof
IP67
Shell material
PA66
Mating Cycles
500 ~3000

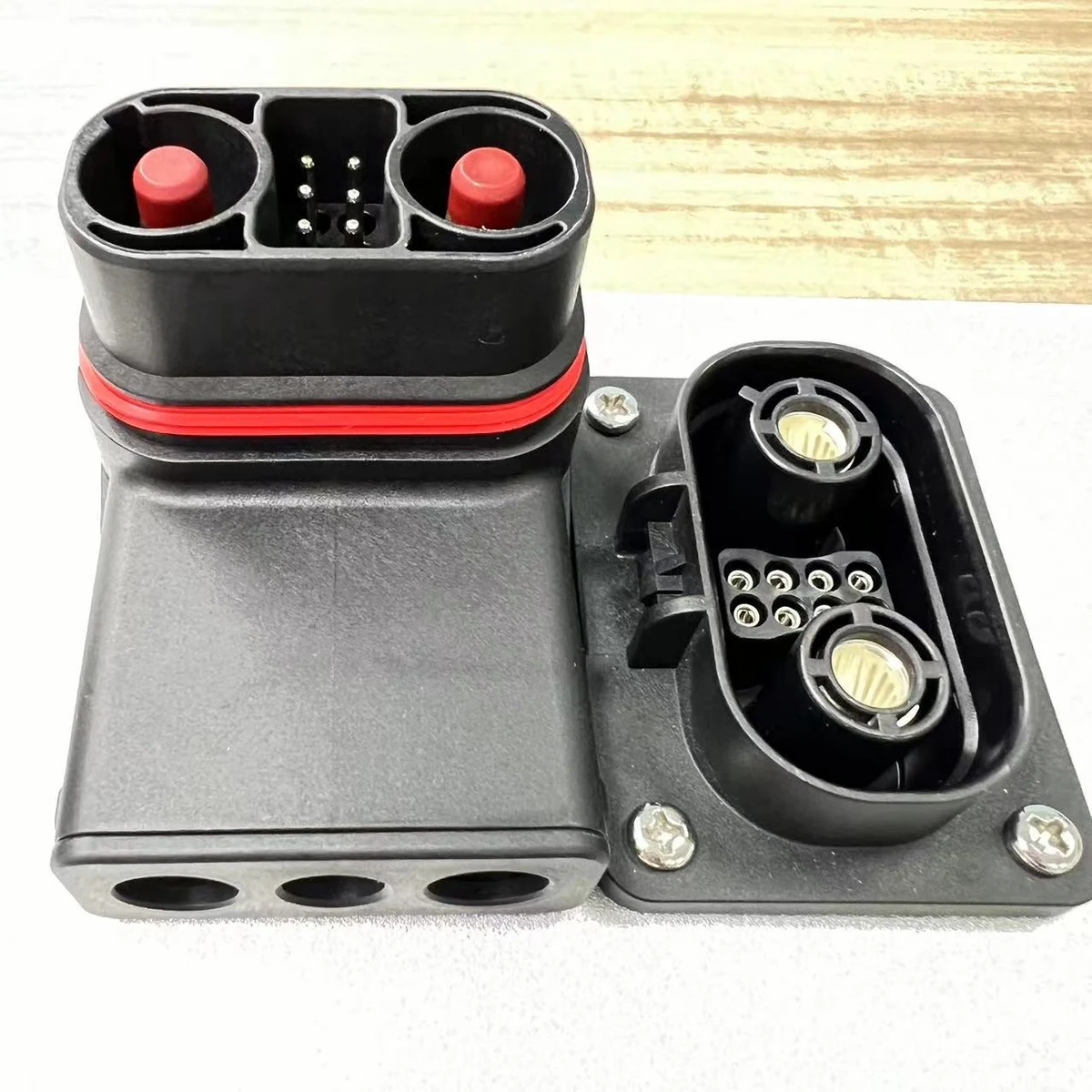

Product images
Technical specifications
Parameters may cover a series or several configurations. Confirm ratings for the selected contact count, dimensions and termination.
Mechanical & connection
| Mating Cycles | 500 ~3000 |
|---|
Electrical & signal
| Current | Up To 480A |
|---|---|
| Voltage | Up To 6000V |
| Salt spray corrosion resistance | 144 Hours |
Materials & finish
| Shell material | PA66 |
|---|---|
| Contact material | Brass Nickel Plated |
| Insulator material | PA66 |
Environmental conditions
| Waterproof | IP67 |
|---|---|
| Working temperature | -40 ~ 85 °C |
Drawings & technical files
Energy storage connector drawing request
After selecting the connection configuration, review its dimensions, pin assignment and installation requirements. Include the required configuration in your request.
Request this product drawingSelection questions
What current values and conditions apply?
Current: Up To 480A. Keep each value with its stated standard, class and test condition.
What voltage values and standards apply?
Voltage: Up To 6000V. Keep each value with its stated standard, class and test condition.
Which protection rating is specified?
Waterproof: IP67. Assembly, seals and mating conditions must match the selected configuration's drawing.
What is specified for Shell material?
Shell material: PA66.
Confirm the configuration. Get a quote.
Share the model or required specification, quantity and delivery target.
