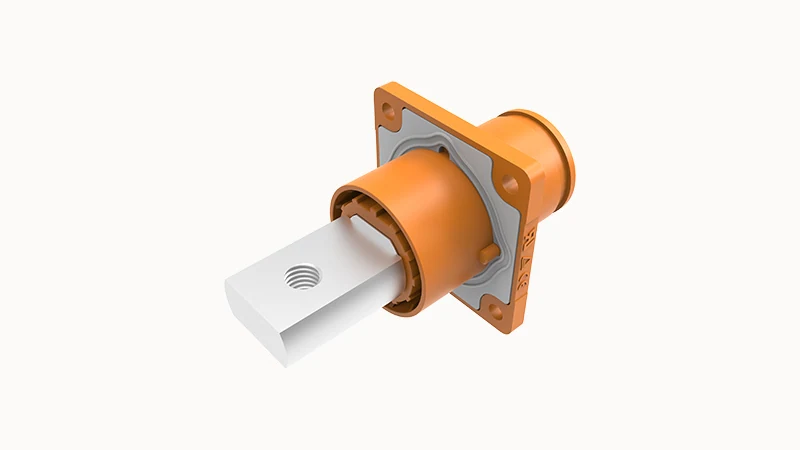

Energy storage connector ESS-12-OR-00-A1
TUV parameters · Rated current: 450A · UL Electrical parameters · Rated voltage: 1500V
Quotation and selection support
- Model
- ESS-12-OR-00-A1
- TUV parameters · Rated current
- 450A
- UL Electrical parameters · Rated voltage
- 1500V
- Overview · Insulation materials
- PA
- Overview · Flammability rating according to UL94
- V0
Product overview
ESS-12-OR-00-A1. Energy storage connector. Rated current: 450A; Rated voltage: 1500V; Insulation materials: PA.
Use the complete ESS-12-OR-00-A1 ordering code and review the interface, installation and rating conditions below.
Discuss this product requirementProduct features
UL Electrical parameters · Rated voltage
1500V
Overview · Insulation materials
PA
Overview · Flammability rating according to UL94
V0
Environmental conditions · Ambient temperature (operation)
-40°C ~ +125°C
Product images
Technical specifications
Product identification
| Manufacturer order number | 28010000484 |
|---|
Mechanical & connection
| Technical parameter · Mechanical life | ≥100 cycles |
|---|---|
| Mechanical properties · Insertion force | < 100N |
| Mechanical properties · Pullout force | < 100N |
Electrical & signal
| UL Electrical parameters · Rated voltage | 1500V |
|---|---|
| Electrical parameters · Insulation resistance | >5000MΩ |
| Electrical parameters · Contact resistance | ≤0.5mΩ |
| TUV parameters · Rated voltage | 1500V |
| TUV parameters · Rated current | 450A |
Wire & cable
| Cable · Certification | UL |
|---|
Materials & finish
| Overview · Insulation materials | PA |
|---|---|
| Material data · Clamping ring material | Silicone |
Environmental conditions
| Environmental conditions · Ambient temperature (operation) | -40°C ~ +125°C |
|---|
Other specifications
| Overview · Flammability rating according to UL94 | V0 |
|---|---|
| Environmental conditions · Protection grade (pair plug) | IP67 |
Drawings & technical files
ESS-12-OR-00-A1 drawing request
After selecting the connection configuration, review its dimensions, pin assignment and installation requirements. Include the required configuration in your request.
Request this product drawingSelection questions
What current values and conditions apply?
TUV parameters · Rated current: 450A. Keep each value with its stated standard, class and test condition.
What voltage values and standards apply?
UL Electrical parameters · Rated voltage: 1500V; TUV parameters · Rated voltage: 1500V. Keep each value with its stated standard, class and test condition.
What is specified for Overview · Insulation materials?
Overview · Insulation materials: PA.
What is specified for Overview · Flammability rating according to UL94?
Overview · Flammability rating according to UL94: V0.
