Electrical parameters · Rated current
200A
Energy storage connector
Product image is temporarily unavailableProduct appearance · configuration depends on the selected modelEnlarge image
Power & energy connectors
Energy storage connector ESP-200A-50-OR-00(01)
Electrical parameters · Rated current: 200A · UL Electrical parameters · Rated voltage: 1500V
Quotation and selection support
- Model
- ESP-200A-50-OR-00(01)
- Electrical parameters · Rated current
- 200A
- UL Electrical parameters · Rated voltage
- 1500V
- Environmental parameters · Degree of protection
- MatchingIP67
- Overview · Insulation materials
- PA
Product overview
ESP-200A-50-OR-00(01). Energy storage connector. Rated current: 200A; Rated voltage: 1500V; Degree of protection: MatchingIP67.
Use the complete ESP-200A-50-OR-00(01) ordering code and review the interface, installation and rating conditions below.
Discuss this product requirementProduct features
UL Electrical parameters · Rated voltage
1500V
Environmental parameters · Degree of protection
MatchingIP67
Overview · Insulation materials
PA
Wiring data · Cable outer diameter
12.5~14mm

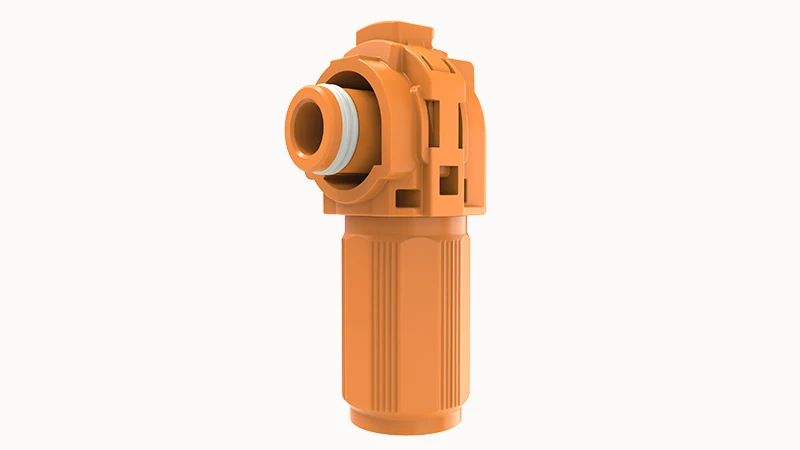

Product images
Technical specifications
Product identification
| Manufacturer order number | 28010000408 |
|---|
Mechanical & connection
| Technical parameter · Mechanical life | ≥100 cycles |
|---|
Electrical & signal
| UL Electrical parameters · Rated voltage | 1500V |
|---|---|
| Electrical parameters · Rated current | 200A |
| Electrical parameters · Insulation resistance | >5000MΩ |
| Electrical parameters · Contact resistance | ≤0.5mΩ |
| Electrical parameter · Rated voltage | 1500V |
| Electrical parameter · Rated current | 200A |
Wire & cable
| Wiring data · Cable outer diameter | 12.5~14mm |
|---|
Materials & finish
| Overview · Insulation materials | PA |
|---|---|
| Marking material · Flammability rating | V0 |
Environmental conditions
| Environmental parameters · Degree of protection | MatchingIP67 |
|---|---|
| Environmental data · Ambient temperature (operation) | -40℃~125℃(depending on derating curve) |
Other specifications
| Wiring data · Wiring mode | Crimp |
|---|---|
| Standards and specifications · Standards and specifications | UL4128 |
Drawings & technical files
ESP-200A-50-OR-00(01) drawing request
After selecting the connection configuration, review its dimensions, pin assignment and installation requirements. Include the required configuration in your request.
Request this product drawingSelection questions
What current values and conditions apply?
Electrical parameters · Rated current: 200A; Electrical parameter · Rated current: 200A. Keep each value with its stated standard, class and test condition.
What voltage values and standards apply?
UL Electrical parameters · Rated voltage: 1500V; Electrical parameter · Rated voltage: 1500V. Keep each value with its stated standard, class and test condition.
Which protection rating is specified?
Environmental parameters · Degree of protection: MatchingIP67. Assembly, seals and mating conditions must match the selected configuration's drawing.
What is specified for Overview · Insulation materials?
Overview · Insulation materials: PA.
