Pitch
1.27 mm (0.050 inch)

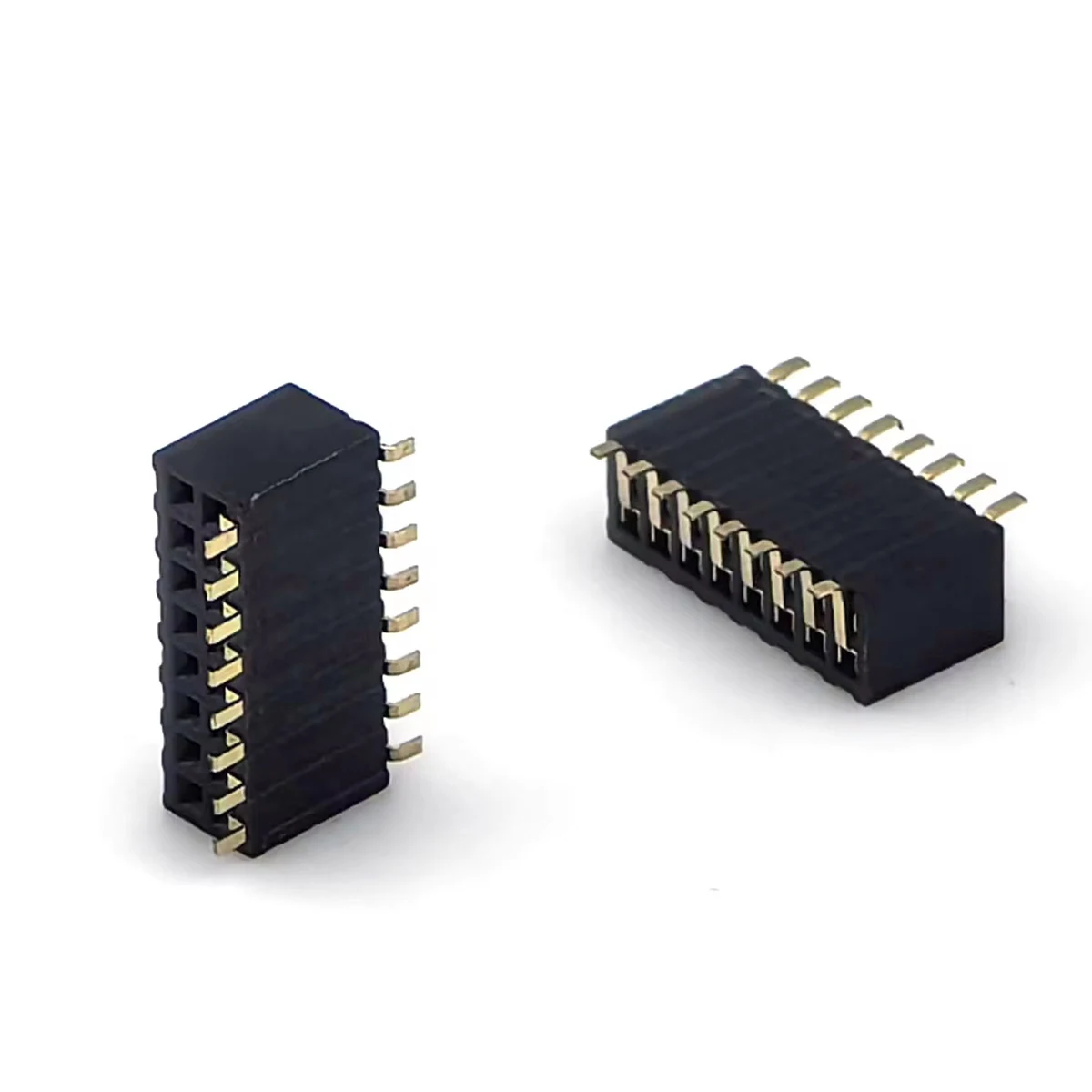

Female header connector
Product image is temporarily unavailableProduct appearance · configuration depends on the selected modelEnlarge image
Board & FPC connectors
Female header connector · 1.27 mm (0.050 inch) · Contact count: 2×8P (16 contacts total)
Series specification range: Pitch: 1.27 mm (0.050 inch) · Pin count: 2×8P (16 contacts total)
Quotation and selection support
- Pitch
- 1.27 mm (0.050 inch)
- Pin count
- 2×8P (16 contacts total)
- Mounting type
- SMT Surface Mount (Gull-wing)
- Termination style
- Solder
Parameters may cover a series or several configurations. Confirm ratings for the selected contact count, dimensions and termination.
Product overview
Female header connector. Female header connector. Series configuration parameters: Pitch: 1.27 mm (0.050 inch); Pin count: 2×8P (16 contacts total); Mounting type: SMT Surface Mount (Gull-wing).
Discuss this product requirementProduct features
Pin count
2×8P (16 contacts total)
Mounting type
SMT Surface Mount (Gull-wing)
Termination style
Solder
Material
Plastic
Product images
Technical specifications
Parameters may cover a series or several configurations. Confirm ratings for the selected contact count, dimensions and termination.
Mechanical & connection
| Termination style | Solder |
|---|---|
| Durability | High |
| Pitch | 1.27 mm (0.050 inch) |
| Pin count | 2×8P (16 contacts total) |
| Mounting type | SMT Surface Mount (Gull-wing) |
| Housing Height | H=3.45 mm |
| Mating Cycles | Minimum 500 cycles |
Electrical & signal
| Current rating | 1.0 A per contact (signal-level application) |
|---|---|
| Voltage rating | AC 500 V |
| Maximum Contact Resistance | ≤25 mΩ |
| Minimum Insulation Resistance | ≥1000 MΩ @ DC 500 V |
| Withstanding Voltage | AC 500 V, 1 minute no breakdown |
| Environmental Resistance | Resist ordinary vibration & dry indoor environment; not for long‑term salty‑fog exposure without enhanced gold plating |
Materials & finish
| Material | Plastic |
|---|---|
| Contact pin material | Phosphor Bronze |
| Contact material | Brass |
| Housing material | Nylon, UL94V-0 |
| Plating Option | Tin / Gold flash / Custom gold thickness over nickel base |
Environmental conditions
| Temperature range | -40 To 85 °C |
|---|---|
| Operating temperature | -40 ℃ ~ +105 ℃ |
Other specifications
| Connection type | Snap-On |
|---|---|
| Number of rows | Dual Row |
| Mating Direction | Side-Entry (Horizontal) |
| Reflow Soldering Profile | Peak temp 260 ℃, dwell ≤10 seconds; follow standard SMT reflow curve |
Drawings & technical files
Female header connector drawing request
After selecting the connection configuration, review its dimensions, pin assignment and installation requirements. Include the required configuration in your request.
Request this product drawingSelection questions
What is the connection pitch?
Pitch: 1.27 mm (0.050 inch). The PCB footprint or mating interface must use the pitch of the selected configuration.
How many positions or contacts are specified?
Pin count: 2×8P (16 contacts total). Where a range or multiple options are shown, select the required count and pin assignment.
What mounting arrangement is used?
Mounting type: SMT Surface Mount (Gull-wing). Check installation clearance and mating geometry for this configuration.
What termination arrangement is used?
Termination style: Solder. Check installation clearance and mating geometry for this configuration.
