Pitch
2.0 mm

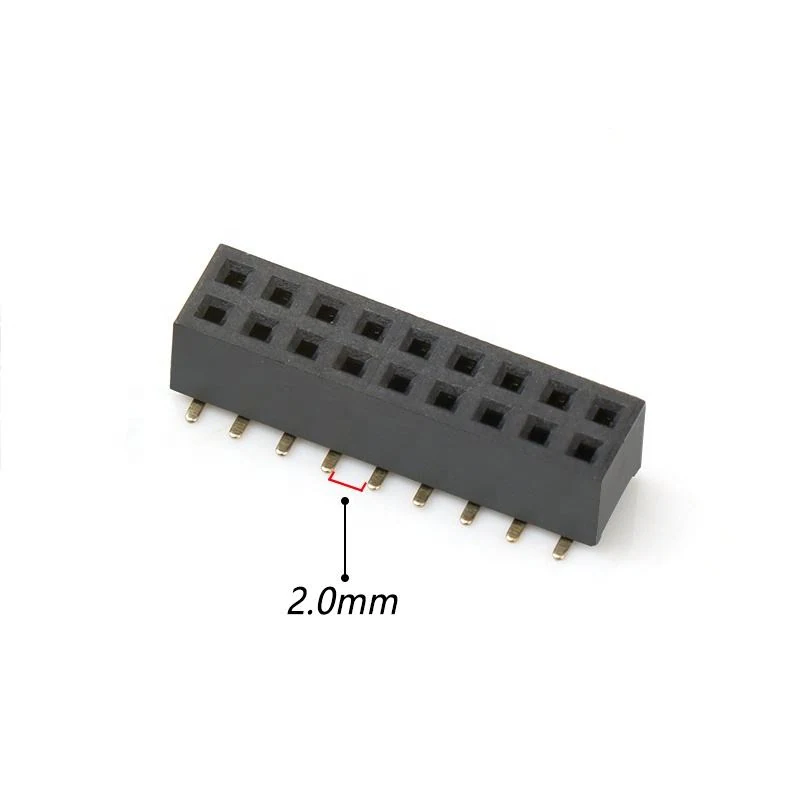

Female header connector
Product image is temporarily unavailableProduct appearance · configuration depends on the selected modelEnlarge image
Board & FPC connectors
Female header connector · 2.0 mm · Contact count: 2 rows × 9 pins, total 18 contacts
Series specification range: Pitch: 2.0 mm · Pin count: 2 rows × 9 pins, total 18 contacts
Quotation and selection support
- Pitch
- 2.0 mm
- Pin count
- 2 rows × 9 pins, total 18 contacts
- Mounting type
- SMT Surface-Mount
- Termination style
- Solder
Parameters may cover a series or several configurations. Confirm ratings for the selected contact count, dimensions and termination.
Product overview
Female header connector. Female header connector. Series configuration parameters: Pitch: 2.0 mm; Pin count: 2 rows × 9 pins, total 18 contacts; Mounting type: SMT Surface-Mount.
Discuss this product requirementProduct features
Pin count
2 rows × 9 pins, total 18 contacts
Mounting type
SMT Surface-Mount
Termination style
Solder
Material
Plastic
Product images
Technical specifications
Parameters may cover a series or several configurations. Confirm ratings for the selected contact count, dimensions and termination.
Mechanical & connection
| Termination style | Solder |
|---|---|
| Durability | High |
| Pitch | 2.0 mm |
| Pin count | 2 rows × 9 pins, total 18 contacts |
| Mounting type | SMT Surface-Mount |
| Mating Cycles | Minimum 500 times |
Electrical & signal
| Rated current | 2 A per pin |
|---|---|
| Rated voltage | 250 V AC/DC |
| Withstand voltage | 500 V AC / 1 min |
| Maximum Contact Resistance | ≤20 mΩ |
| Minimum Insulation Resistance | ≥1000 MΩ |
Materials & finish
| Material | Plastic |
|---|---|
| Contact pin material | Phosphor Bronze |
| Housing material | PA6T, UL94V-0 High-Temperature Plastic |
| Terminal material | Phosphor Bronze |
| Housing color | Black |
| Plating Option | Tin-over-Nickel; Gold flash over Nickel (custom gold thickness available) |
Environmental conditions
| Temperature range | -40 To 85 °C |
|---|---|
| Operating temperature | -40 ℃ ~ +105 ℃ |
Other specifications
| Connection type | Snap-On |
|---|---|
| Reflow Soldering Profile | Peak 260 ℃, dwell ≤10 seconds |
Drawings & technical files
Female header connector drawing request
After selecting the connection configuration, review its dimensions, pin assignment and installation requirements. Include the required configuration in your request.
Request this product drawingSelection questions
What is the connection pitch?
Pitch: 2.0 mm. The PCB footprint or mating interface must use the pitch of the selected configuration.
How many positions or contacts are specified?
Pin count: 2 rows × 9 pins, total 18 contacts. Where a range or multiple options are shown, select the required count and pin assignment.
What mounting arrangement is used?
Mounting type: SMT Surface-Mount. Check installation clearance and mating geometry for this configuration.
What termination arrangement is used?
Termination style: Solder. Check installation clearance and mating geometry for this configuration.
