Pitch
2.54 mm (0.100 inch)
Female header connector
Product image is temporarily unavailableProduct appearance · configuration depends on the selected modelEnlarge image
Board & FPC connectors
Female header connector · 2.54 mm (0.100 inch) · Contact count: 4P, Single Row
Series specification range: Pitch: 2.54 mm (0.100 inch) · Pin count: 4P, Single Row
Quotation and selection support
- Pitch
- 2.54 mm (0.100 inch)
- Pin count
- 4P, Single Row
- Termination style
- Solder
- Material
- Plastic
Parameters may cover a series or several configurations. Confirm ratings for the selected contact count, dimensions and termination.
Product overview
Female header connector. Female header connector. Series configuration parameters: Pitch: 2.54 mm (0.100 inch); Pin count: 4P, Single Row; Termination style: Solder.
Discuss this product requirementProduct features
Pin count
4P, Single Row
Termination style
Solder
Material
Plastic
Temperature range
-40 To 85 °C

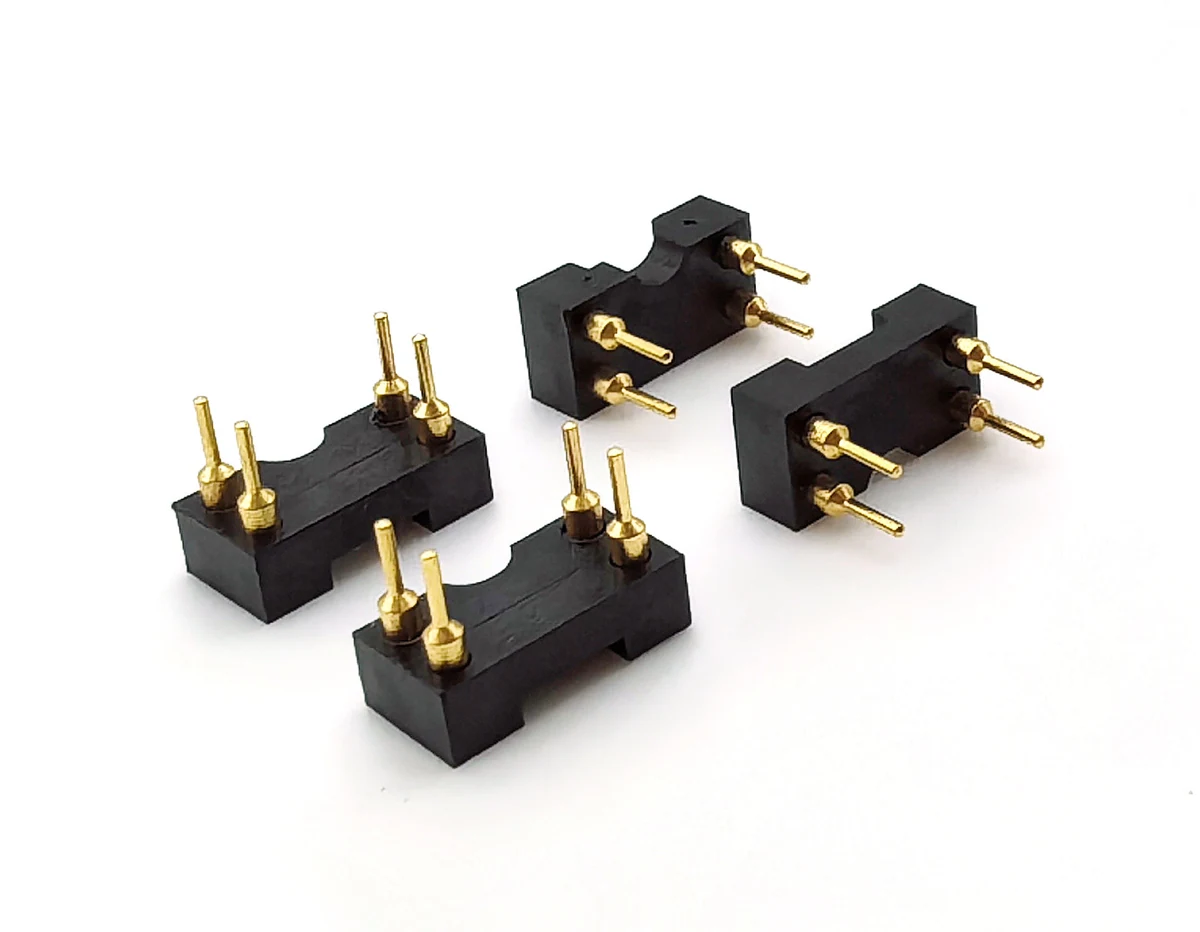

Product images
Technical specifications
Parameters may cover a series or several configurations. Confirm ratings for the selected contact count, dimensions and termination.
Mechanical & connection
| Termination style | Solder |
|---|---|
| Durability | High |
| Pitch | 2.54 mm (0.100 inch) |
| Pin count | 4P, Single Row |
| Insulator Height | H3.0 mm |
| Mating Cycles | ≥500 Cycles |
| Insertion Force Per Pin | Max 150 g |
| Withdrawal Force Per Pin | Min 30 g |
Electrical & signal
| Rated voltage | 60 V |
|---|---|
| Rated current | 3 A per pin |
| Maximum Contact Resistance | ≤20 mΩ |
| Minimum Insulation Resistance | ≥1000 MΩ |
| Withstanding Voltage | 500 V AC / 1 min |
Materials & finish
| Material | Plastic |
|---|---|
| Contact pin material | Phosphor Bronze |
| Insulator Housing | PPS, UL94V-0 |
| Contact material | Brass / Beryllium Copper Alloy |
| Contact plating | All gold plated |
Environmental conditions
| Temperature range | -40 To 85 °C |
|---|---|
| Operating temperature | -40 ℃ ~ +105 ℃ |
| Storage temperature | -45 ℃ ~ +110 ℃ |
Other specifications
| Connection type | Snap-On |
|---|---|
| Orientation | Straight / DIP through hole |
| Contact Type | Machined Round-Hole Female Socket |
| Acceptable Mating Pin Dia | 0.70-0.90 mm |
| Soldering Process | Wave soldering for DIP through hole |
| Soldering Temperature & Time | 260 ℃, max 5 seconds |
Drawings & technical files
Female header connector drawing request
After selecting the connection configuration, review its dimensions, pin assignment and installation requirements. Include the required configuration in your request.
Request this product drawingSelection questions
What is the connection pitch?
Pitch: 2.54 mm (0.100 inch). The PCB footprint or mating interface must use the pitch of the selected configuration.
How many positions or contacts are specified?
Pin count: 4P, Single Row. Where a range or multiple options are shown, select the required count and pin assignment.
What termination arrangement is used?
Termination style: Solder. Check installation clearance and mating geometry for this configuration.
What is specified for Material?
Material: Plastic.
