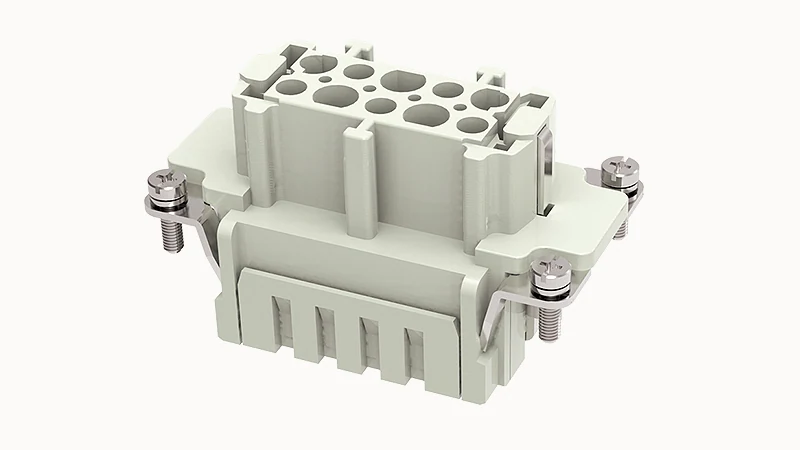

Heavy-duty connector insert DE-010-FS · Contact count: 10
Versions · Number of positions: 10 · Versions · Female/male: Female
Quotation and selection support
- Model
- DE-010-FS
- Versions · Number of positions
- 10
- Versions · Female/male
- Female
- Versions · Connection method
- Spring cage connection
- Electrical parameters · Rated current
- 16A
Product overview
DE-010-FS. Heavy-duty connector insert. Number of positions: 10; Female/male: Female; Connection method: Spring cage connection.
Use the complete DE-010-FS ordering code and review the interface, installation and rating conditions below.
Discuss this product requirementProduct features
Versions · Female/male
Female
Versions · Connection method
Spring cage connection
Electrical parameters · Rated current
16A
Electrical parameters · Rated pulse voltage
6KV
Product images
Technical specifications
Product identification
| Manufacturer order number | 21020000114 |
|---|
Mechanical & connection
| Versions · Connection method | Spring cage connection |
|---|---|
| Versions · Female/male | Female |
| Versions · Dimension | 10B |
| Versions · Number of positions | 10 |
| Electrical parameters · Mating Cycles | ≥500 time |
| Electrical parameters · Strip length | 7-9mm |
Electrical & signal
| Electrical parameters · Rated current | 16A |
|---|---|
| Electrical parameters · Rated pulse voltage | 6KV |
| Electrical parameters · Insulation resistance | ≥10000MΩ |
| Electrical parameters · Contact resistance | ≤1mΩ |
Wire & cable
| Electrical parameters · Conductor cross sections (mm²) | 0.14-2.5mm² |
|---|---|
| Electrical parameters · Conductor cross sections (AWG) | 26-14AWG |
Materials & finish
| Material characteristics · Material（insert） | Polycarbonate（PC） |
|---|---|
| Material characteristics · Materia（Contact） | Copper alloy |
| Material characteristics · Surface（Contact） | Silver plated |
| Material characteristics · Flammability rating | V-0 |
| Material characteristics · Color | Grey/White（RAL 7032） |
| Material characteristics · RoHS | Comply with RoHS exemptions |
Environmental conditions
| Electrical parameters · Temperature range | -40℃~+125℃ |
|---|
Other specifications
| Marking · Classification | Insert |
|---|---|
| Marking · Series | DE |
| Versions · PE Contacts | Yes |
| Electrical parameters · Pollution level | 3 |
| Standards · Connection meets standards | DIN EN 60664 DIN EN 61984 |
