Pitch
2.54mm
Pin header connector
Product image is temporarily unavailableProduct appearance · configuration depends on the selected modelEnlarge image
Board & FPC connectors

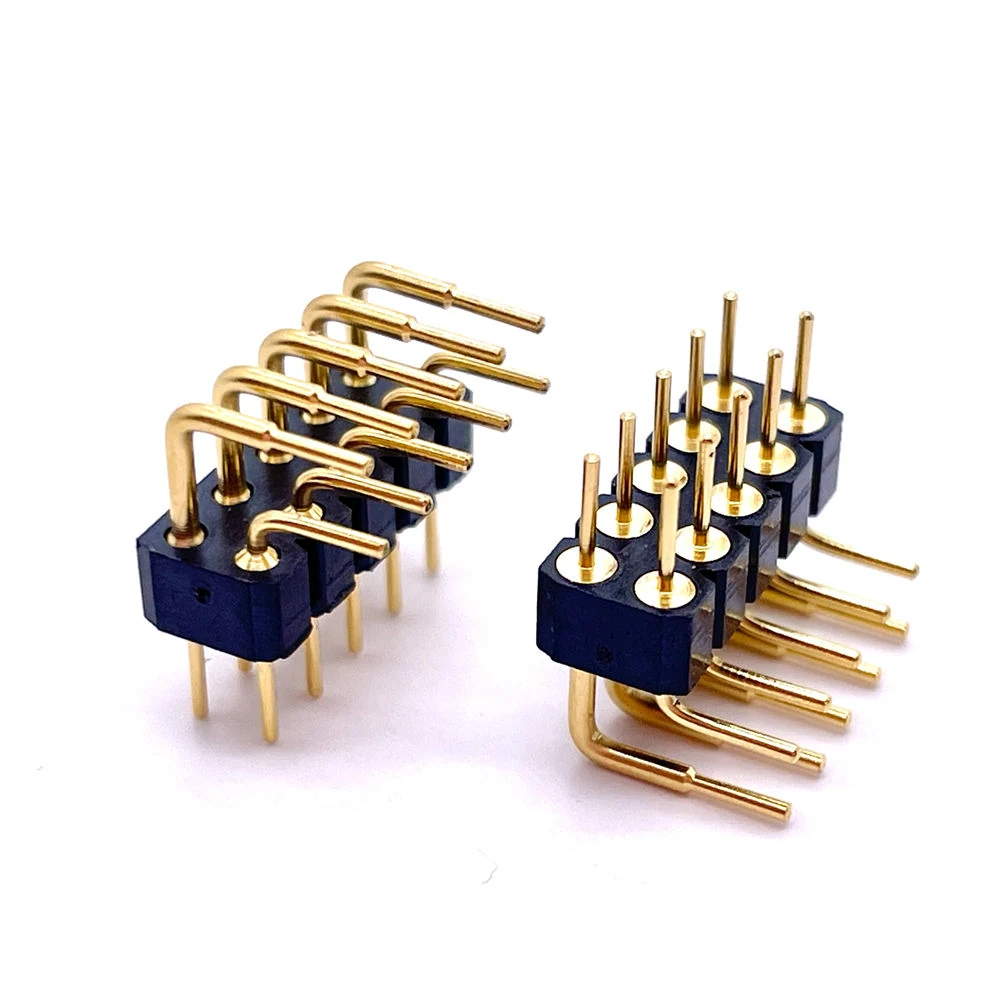

Pin header connector · 2.54mm · Contact count: 06~80 Pins
Series specification range: Pitch: 2.54mm · Pin: 06~80 Pins
Quotation and selection support
- Pitch
- 2.54mm
- Pin
- 06~80 Pins
- Mounting style
- right angle 90° through hole; optional Straight / SMT version
- Housing
- PBT UL94V-0 / PA6T
Parameters may cover a series or several configurations. Confirm ratings for the selected contact count, dimensions and termination.
Product overview
Pin header connector. Pin header connector. Series configuration parameters: Pitch: 2.54mm; Pin: 06~80 Pins; Mounting style: right angle 90° through hole; optional Straight / SMT version.
Discuss this product requirementProduct features
Pin
06~80 Pins
Mounting style
right angle 90° through hole; optional Straight / SMT version
Housing
PBT UL94V-0 / PA6T
Contact plating
Gold Flash Selective
Product images
Technical specifications
Parameters may cover a series or several configurations. Confirm ratings for the selected contact count, dimensions and termination.
Mechanical & connection
| Pin | 06~80 Pins |
|---|---|
| Gender | Male |
| Pitch | 2.54mm |
| Mounting style | right angle 90° through hole; optional Straight / SMT version |
| Insulator Height | Standard 3.0 mm, customizable |
| Mating Cycles | ≥300 times |
| Retention force | Meet IEC connector standard |
Electrical & signal
| Rated current | 3A |
|---|---|
| Rated voltage | 250V AC RMS |
| Contact resistance | ≤20mΩ Max |
| Insulation resistance | ≥1000MΩ Min |
| Withstanding Voltage | AC 500V-600V |
Materials & finish
| Housing | PBT UL94V-0 / PA6T |
|---|---|
| Contact plating | Gold Flash Selective |
| Contact material | Precision-machined brass |
| Insulator | PA6T / PBT, UL94V-0 flame retardant, Black color |
| Plating Option | Nickel base + Matte Tin / Selective Gold flash on mating area |
Environmental conditions
| Operating temperature | -40℃ ~ +105℃ |
|---|
Other specifications
| Pin Configuration | Double-row 2×5P (Total 10P) |
|---|---|
| Position | 2×5P, expandable to other pin counts |
| Wave soldering | 255℃ max, 3-5s dwell time recommended |
| Reflow Soldering(SMT version) | Max 260℃, 5-10s; choose LCP/PA6T high-temp plastic for SMT reflow |
Drawings & technical files
Pin header connector drawing request
After selecting the connection configuration, review its dimensions, pin assignment and installation requirements. Include the required configuration in your request.
Request this product drawingSelection questions
What is the connection pitch?
Pitch: 2.54mm. The PCB footprint or mating interface must use the pitch of the selected configuration.
How many positions or contacts are specified?
Pin: 06~80 Pins. Where a range or multiple options are shown, select the required count and pin assignment.
What mounting arrangement is used?
Mounting style: right angle 90° through hole; optional Straight / SMT version. Check installation clearance and mating geometry for this configuration.
What is specified for Housing?
Housing: PBT UL94V-0 / PA6T.
