Item properties · Pitch
7.62mm
Pluggable PCB terminal plug
Product image is temporarily unavailableProduct appearance · configuration depends on the selected modelEnlarge image
Terminal blocks
Pluggable PCB terminal plug 2EDGKDGB-7.62-04P · 7.62mm · Contact count: 4
Item properties · Pitch: 7.62mm · Item properties · Number of potentials: 4
Quotation and selection support
- Model
- 2EDGKDGB-7.62-04P
- Item properties · Pitch
- 7.62mm
- Item properties · Number of potentials
- 4
- Item properties · Connection method
- push-in spring connection
- Connection capacity · Conductor cross section solid
- 0.5~2.5mm²
Product overview
2EDGKDGB-7.62-04P. Pluggable PCB terminal plug. Pitch: 7.62mm; Number of potentials: 4; Connection method: push-in spring connection.
Use the complete 2EDGKDGB-7.62-04P ordering code and review the interface, installation and rating conditions below.
Discuss this product requirementProduct features
Item properties · Number of potentials
4
Item properties · Connection method
push-in spring connection
Connection capacity · Conductor cross section solid
0.5~2.5mm²
UL Electrical parameters · Rated current (B)
10A

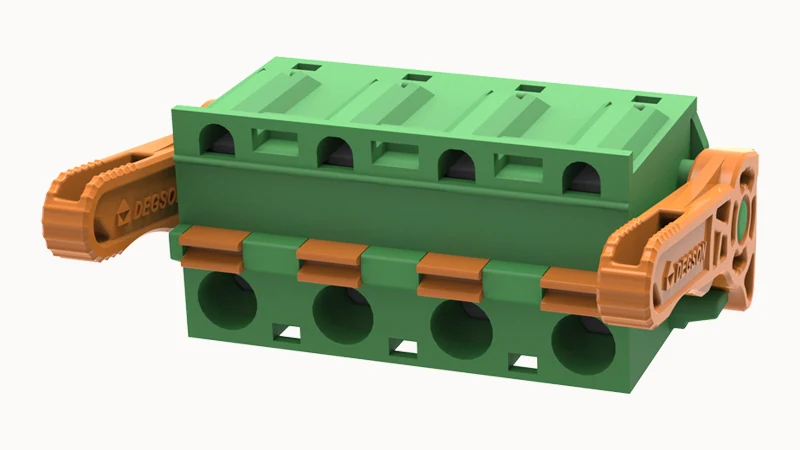

Product images
Technical specifications
Product identification
| Manufacturer order number | 10020008377 |
|---|
Mechanical & connection
| Connection capacity · Strip length | 10mm |
|---|---|
| Item properties · Connection method | push-in spring connection |
| Item properties · Pitch | 7.62mm |
| Item properties · Number of potentials | 4 |
Electrical & signal
| UL Electrical parameters · Rated voltage (B) | 300V |
|---|---|
| UL Electrical parameters · Rated voltage (D) | 300V |
| UL Electrical parameters · Rated current (B) | 10A |
| UL Electrical parameters · Rated current (D) | 10A |
| IEC Electrical parameters · Rated voltage (III/2) | 400V |
| IEC Electrical parameters · Rated surge voltage (III/2) | 4KV |
| VDE parameters · Overvoltage category/Degree of pollution [Overvoltage category/Degree of pollution: III/3] | III/3 |
| VDE parameters · Overvoltage category/Degree of pollution [Overvoltage category/Degree of pollution: III/2] | III/2 |
| VDE parameters · Overvoltage category/Degree of pollution [Overvoltage category/Degree of pollution: II/2] | II/2 |
| VDE parameters · Rated voltage [Overvoltage category/Degree of pollution: III/3] | 400V |
| VDE parameters · Rated voltage [Overvoltage category/Degree of pollution: III/2] | 400V |
| VDE parameters · Rated voltage [Overvoltage category/Degree of pollution: II/2] | 400V |
| VDE parameters · Rated current [Overvoltage category/Degree of pollution: III/3] | 20A |
| VDE parameters · Rated current [Overvoltage category/Degree of pollution: III/2] | 20A |
| VDE parameters · Rated current [Overvoltage category/Degree of pollution: II/2] | 20A |
| UL parameters · Rated voltage [Use group: B] | 300V |
| UL parameters · Rated voltage [Use group: D] | 300V |
| UL parameters · Rated current [Use group: B] | 10A |
| UL parameters · Rated current [Use group: D] | 10A |
Wire & cable
| Connection capacity · Conductor cross section solid | 0.5~2.5mm² |
|---|---|
| Connection capacity · Conductor cross section flexible | 0.5~2.5mm² |
Materials & finish
| Material data · Environmental items | Compliant with REACH/RoHS |
|---|---|
| Material data · Contact material | Copper alloy |
| Material data · Contact point metal surface | tin plated |
| Material data · Insulation materials | PA66 |
| Material data · Flammability rating | UL94V-0 |
Environmental conditions
| Environmental data · Ambient temperature (assembly) | -5℃~100℃ |
|---|---|
| Environmental data · Ambient temperature (operation) | -40℃~105℃(depending on derating curve) |
| Environmental data · Ambient temperature (storage/transportation) | -40℃~70℃ |
Other specifications
| Connection capacity · AWG | 26~12AWG |
|---|---|
| Item properties · Pluggable or not | Yes |
| Item properties · Number of rows | 1 |
| Mechanical tests · Test specification | IEC61984/ UL1059 |
| Environmental data · Relative humidity (storage/transport) | 30% ~ 70% |
| Accessories · Code strip | 2EDG-PWI |
| UL parameters · Use group [Use group: B] | B |
| UL parameters · Use group [Use group: C] | C |
| UL parameters · Use group [Use group: D] | D |
Drawings & technical files
2EDGKDGB-7.62-04P drawing request
After selecting the connection configuration, review its dimensions, pin assignment and installation requirements. Include the required configuration in your request.
Request this product drawingSelection questions
What is the connection pitch?
Item properties · Pitch: 7.62mm. The PCB footprint or mating interface must use the pitch of the selected configuration.
How many positions or contacts are specified?
Item properties · Number of potentials: 4. Where a range or multiple options are shown, select the required count and pin assignment.
What termination arrangement is used?
Item properties · Connection method: push-in spring connection. Check installation clearance and mating geometry for this configuration.
What is specified for Connection capacity · Conductor cross section solid?
Connection capacity · Conductor cross section solid: 0.5~2.5mm².
