Number of contacts
2-37
Push-pull connector
Product image is temporarily unavailableProduct appearance · configuration depends on the selected modelEnlarge image
Push-pull connectors
Push-pull connector · Contact count: 2-37 · Panel Mount
Series specification range: Number of contacts: 2-37 · IP rating: IP50/IP68
Quotation and selection support
- Number of contacts
- 2-37
- IP rating
- IP50/IP68
- Material
- Brass Chrome Plated
- Durability
- 5000 Mating Cycles
Parameters may cover a series or several configurations. Confirm ratings for the selected contact count, dimensions and termination.
Product overview
Push-pull connector. Push-pull connector. Series configuration parameters: Number of contacts: 2-37; IP rating: IP50/IP68; Material: Brass Chrome Plated.
Discuss this product requirementProduct features
IP rating
IP50/IP68
Material
Brass Chrome Plated
Durability
5000 Mating Cycles
Shell Size
0-6

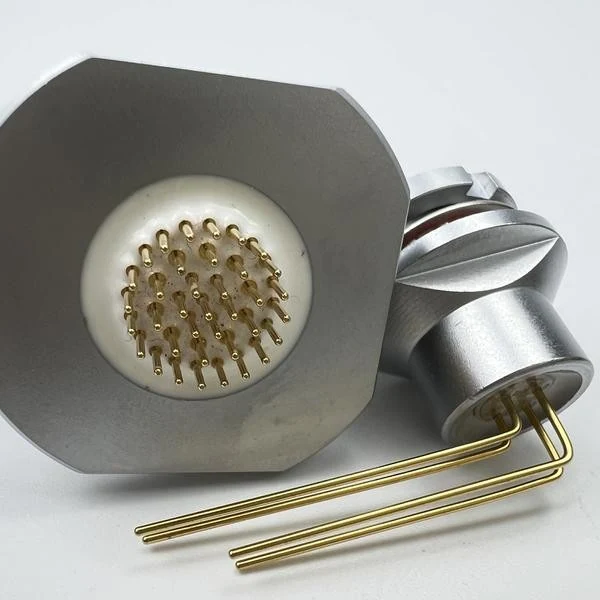

Product images
Technical specifications
Parameters may cover a series or several configurations. Confirm ratings for the selected contact count, dimensions and termination.
Mechanical & connection
| Shell Size | 0-6 |
|---|---|
| Mounting type | Panel Mount |
| Durability | 5000 Mating Cycles |
| Termination style | Solder/Print PCB |
| Number of contacts | 2-37 |
Electrical & signal
| Voltage rating | Up To 500V |
|---|
Materials & finish
| Material | Brass Chrome Plated |
|---|
Environmental conditions
| Operating temperature | -55°C To +250°C |
|---|---|
| IP rating | IP50/IP68 |
Other specifications
| Connection type | Push Pull |
|---|---|
| Product type | Electrical Connectors |
Drawings & technical files
Push-pull connector drawing request
After selecting the connection configuration, review its dimensions, pin assignment and installation requirements. Include the required configuration in your request.
Request this product drawingSelection questions
How many positions or contacts are specified?
Number of contacts: 2-37. Where a range or multiple options are shown, select the required count and pin assignment.
Which protection rating is specified?
IP rating: IP50/IP68. Assembly, seals and mating conditions must match the selected configuration's drawing.
What is specified for Material?
Material: Brass Chrome Plated.
What is specified for Durability?
Durability: 5000 Mating Cycles.
Confirm the configuration. Get a quote.
Share the model or required specification, quantity and delivery target.
