Positions
80 (20 × 4)
SFP connector
Product image is temporarily unavailableProduct appearance · configuration depends on the selected modelEnlarge image
I/O & data connectors
SFP connector · Contact count: 80 (20 × 4)
Series specification range: Positions: 80 (20 × 4) · Mounting: through hole, Right Angle (Straight solderless)
Quotation and selection support
- Positions
- 80 (20 × 4)
- Mounting
- through hole, Right Angle (Straight solderless)
- Rated voltage
- 500 V
- Current rating
- 0.5 A/contact @ 3.3 V
Parameters may cover a series or several configurations. Confirm ratings for the selected contact count, dimensions and termination.
Product overview
SFP connector. SFP connector. Series configuration parameters: Positions: 80 (20 × 4); Mounting: through hole, Right Angle (Straight solderless); Rated voltage: 500 V.
Discuss this product requirementProduct features
Mounting
through hole, Right Angle (Straight solderless)
Rated voltage
500 V
Current rating
0.5 A/contact @ 3.3 V
Contact material
Phosphor bronze
Product images
Technical specifications
Parameters may cover a series or several configurations. Confirm ratings for the selected contact count, dimensions and termination.
Mechanical & connection
| Gender | Female |
|---|---|
| Positions | 80 (20 × 4) |
| Pitch | 0.8 mm |
| Mounting | through hole, Right Angle (Straight solderless) |
| Termination | Press-Fit Compliant Pin (Ø0.64 mm, tail 2.05 mm / 3.05 mm optional) |
| Mating Cycles | ≥ 100 (hot-swap module) |
| Insertion Force (module) | ≤ 40 N |
| Extraction Force (module) | ≤ 11.5 N |
| Typical Dimensions | L 57.5 × W 48.7 × H 9.75-12.1 mm |
| Port Pitch | 14.25 mm (center-to-center) |
Electrical & signal
| Rated voltage | 500 V |
|---|---|
| Current rating | 0.5 A/contact @ 3.3 V |
| Contact resistance | ≤ 80 mΩ |
| Insulation resistance | ≥ 1000 MΩ @ 500 V DC |
| Withstand voltage | 300 V AC |
Materials & finish
| Color | nickel Silver |
|---|---|
| Contact material | Phosphor bronze |
| Contact plating | Gold flash on mating area (30 µ" optional), tin on press-fit tail |
| Cage Material | Nickel silver (copper alloy), nickel plated |
Other specifications
| Type | SFP+ |
|---|---|

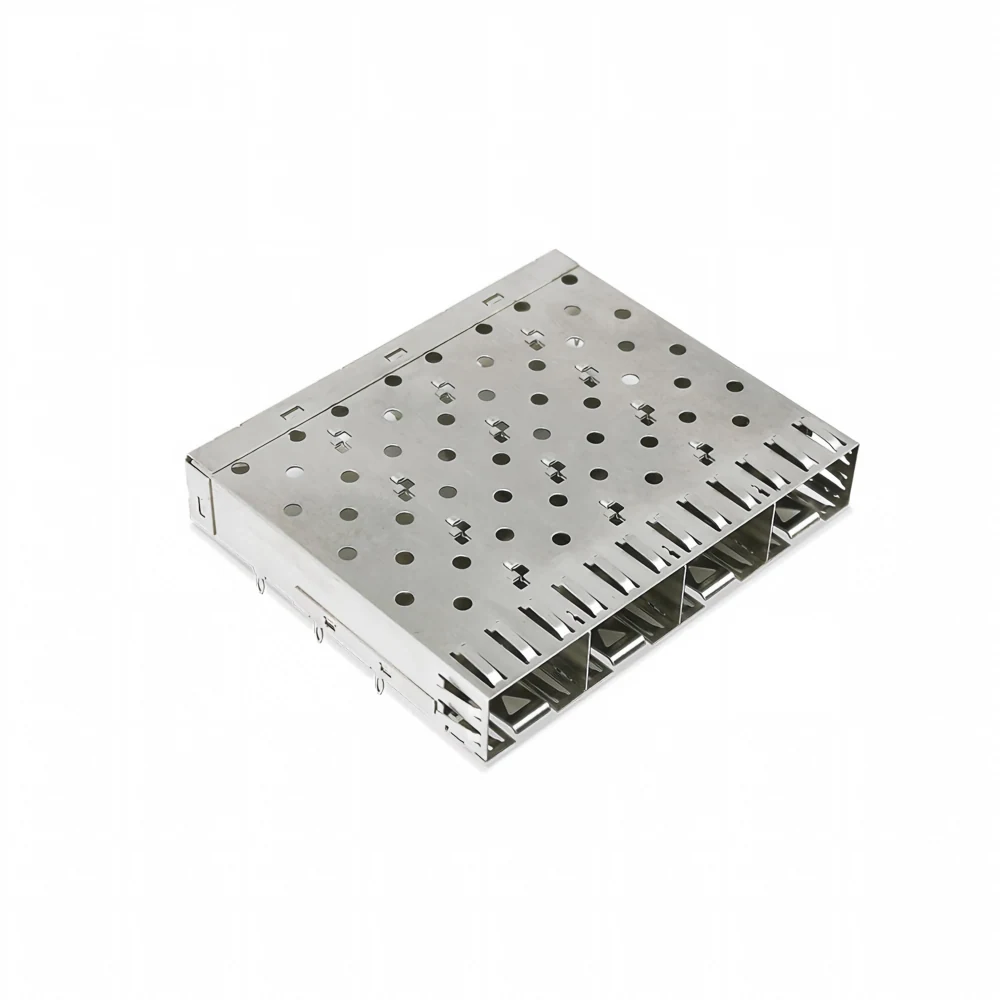

| Product type | SFP+ 1×4 Ganged Cage Assembly (with integrated receptacle) |
| Form Factor | SFP (1.25G) / SFP+ (10.3125G) / SFP28 (25.78G) backward compatible |
| Housing Flammability Rating | UL 94 V-0 (LCP) |
Drawings & technical files
SFP connector drawing request
After selecting the connection configuration, review its dimensions, pin assignment and installation requirements. Include the required configuration in your request.
Request this product drawingSelection questions
How many positions or contacts are specified?
Positions: 80 (20 × 4). Where a range or multiple options are shown, select the required count and pin assignment.
What mounting arrangement is used?
Mounting: through hole, Right Angle (Straight solderless). Check installation clearance and mating geometry for this configuration.
What voltage values and standards apply?
Rated voltage: 500 V; Withstand voltage: 300 V AC. Keep each value with its stated standard, class and test condition.
What current values and conditions apply?
Current rating: 0.5 A/contact @ 3.3 V. Keep each value with its stated standard, class and test condition.
