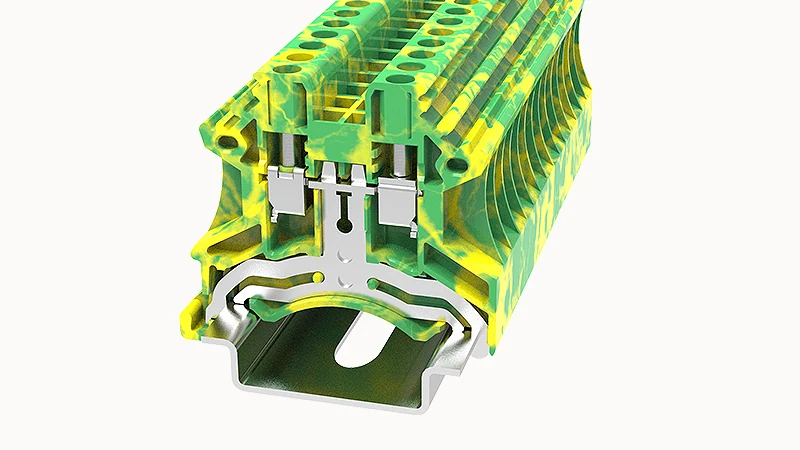

Product image is temporarily unavailableProduct appearance · configuration depends on the selected modelEnlarge image
Terminal blocks
Terminal blocks DC2.5-PE
Overview · Connection method: screw connection · Wiring data · Conductor cross section solid AWG: 28~12
Quotation and selection support
- Model
- DC2.5-PE
- Overview · Connection method
- screw connection
- Wiring data · Conductor cross section solid AWG
- 28~12
- IEC Electrical parameters · Rated surge voltage
- 8KV
- Overview · Number of rows
- 1
Product overview
DC2.5-PE. Terminal blocks. Connection method: screw connection; Conductor cross section solid AWG: 28~12; Rated surge voltage: 8KV.
Use the complete DC2.5-PE ordering code and review the interface, installation and rating conditions below.
Discuss this product requirementProduct features
Wiring data · Conductor cross section solid AWG
28~12
IEC Electrical parameters · Rated surge voltage
8KV
Overview · Number of rows
1
Overview · Insulation materials
PA
Product images
Technical specifications
Product identification
| Manufacturer order number | 11020000028 |
|---|
Mechanical & connection
| Overview · Connection method | screw connection |
|---|---|
| Dimension · Width | 5.1mm |
| Dimension · End plate width | 1.5mm |
| Dimension · Height | 40mm |
| Dimension · Height · NS 35/7,5 | 41.5mm |
| Dimension · Height · NS 35/15 | 49mm |
| Dimension · Length | 44.5mm |
| Wiring data · Strip length | 8~9mm |
| Wiring data · Tightening torque | 0.4N.m |
| Accessories · Slotted screwdriver size (blade thickness x width) | 0.6×3.5 |
Electrical & signal
| IEC Electrical parameters · Rated surge voltage | 8KV |
|---|---|
| Electrical performance test · Voltage drop | ≤3.2mV |
Wire & cable
| Wiring data · Conductor cross section solid AWG | 28~12 |
|---|---|
| Wiring data · Conductor cross section solid | 0.2~4mm² |
| Wiring data · Conductor cross section flexible | 0.2~2.5mm² |
| Wiring data · Conductor cross section flexible (ferrule without plastic sleeve) | 0.2-2.5mm² |
| Wiring data · Conductor cross section flexible (ferrule with plastic sleeve) | 0.5-1.5mm² |
| UL Electrical parameters · Rated cross section [Use group: B] | 26-12AWG |
| UL Electrical parameters · Rated cross section [Use group: C] | 26-12AWG |
Materials & finish
| Overview · Insulation materials | PA |
|---|---|
| Overview · Insulating material group | I |
Environmental conditions
| Environmental conditions · Ambient temperature (operation) | -40 °C ~ 105 °C（depending on derating curve） |
|---|---|
| Environmental conditions · Ambient temperature (storage/transportation) | -25℃~60℃ |
| Electrical performance test · Temperature rise test | ≤45 K |
Other specifications
| Overview · Number of rows | 1 |
|---|---|
| Overview · Number of connections | 2 |
| Overview · Open-end side panels | Yes |
| Overview · Flammability rating according to UL94 | V0 |
| Overview · Standard test | IEC60947-7-2 |
| Wiring data · 2 flexible conductors with a TWIN ferrule | 0.5-1mm² |
| Wiring data · Screw type | Slotted screw |
| Wiring data · Screw thread | M2.5 |
| Environmental conditions · Relative humidity (storage/transport) | 25%~75% |
| Mechanical tests · Mechanical strength | Passed the test |
| Mechanical tests · Fixing support | Passed the test |
| Mechanical tests · Rotational pull test | Passed the test |
| Safety test · Anti-finger touch | Passed the test |
| Environmental protection · RoHS | No excessive harmful substances |
| Environmental protection · REACh SVHC | Lead 7439-92-1 |
| Marker · Side marker | ZB5 / WB5 |
| Accessories · Bridge | DFAXX-5.2 |
| Accessories · End cover | D-DC2.5 |
| Installation · End clamp | E-WS N / E-PC-1100A |
| Installation · Terminal strip marker support | KLM3-20x8 / KLM3-44x8 / DLM2 / DBE-1 / DBE-2 |
| Installation · DIN rail | NS35/7.5 & NS35/15 |
| Marking & Installation · Marking strip | ZB5 |
| Marking & Installation · Marker cards | DBE-1 |
| Accessories · End clamp | E-WS |
| Accessories · DIN rail | NS35/7.5-1000-00A(H) |
| UL Electrical parameters · Use group [Use group: B] | B |
| UL Electrical parameters · Use group [Use group: C] | C |
