Positions / contacts
24
USB Type-C connector
Product image is temporarily unavailableProduct appearance · configuration depends on the selected modelEnlarge image
I/O & data connectors
USB Type-C connector · Contact count: 24 · Horizontal
Series specification range: Positions / contacts: 24 · Mounting orientation: Horizontal
Quotation and selection support
- Positions / contacts
- 24
- Mounting orientation
- Horizontal
- Voltage rating
- 5V DC
- Rated current
- 3A MAX
Parameters may cover a series or several configurations. Confirm ratings for the selected contact count, dimensions and termination.
Product overview
USB Type-C connector. USB Type-C connector. Series configuration parameters: Positions / contacts: 24; Mounting orientation: Horizontal; Voltage rating: 5V DC.
Discuss this product requirementProduct features
Mounting orientation
Horizontal
Voltage rating
5V DC
Rated current
3A MAX
Insulating material
LCP Black

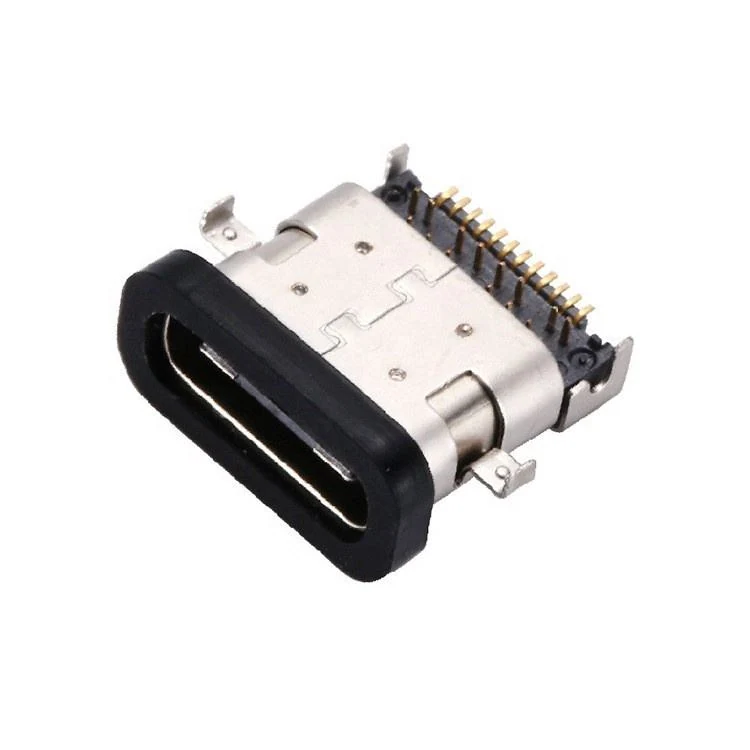

Product images
Technical specifications
Parameters may cover a series or several configurations. Confirm ratings for the selected contact count, dimensions and termination.
Mechanical & connection
| Insertion force | 3.57Kgf MAX. |
|---|---|
| Durability | 10000 cycles |
| Positions / contacts | 24 |
| Mounting orientation | Horizontal |
Electrical & signal
| Rated current | 3A MAX |
|---|---|
| Shielding | stainless steel |
| Contact resistance | 50mΩ Max |
| Voltage rating | 5V DC |
| Insulation resistance | 100MΩ MIN |
| Rated current | 5A |
Materials & finish
| Insulating material | LCP Black |
|---|---|
| Shell material | Stainless Steel |
| Contact material | Copper |
Environmental conditions
| Operating temperature | -20°c to + 85°c |
|---|
Other specifications
| Connector Type | Type C Female Connector 24pin |
|---|---|
| Connector Type | USB C Connector Set |
| Type | Solder Type |
| Contact | Copper with golden plated |
Drawings & technical files
USB Type-C connector drawing request
After selecting the connection configuration, review its dimensions, pin assignment and installation requirements. Include the required configuration in your request.
Request this product drawingSelection questions
How many positions or contacts are specified?
Positions / contacts: 24. Where a range or multiple options are shown, select the required count and pin assignment.
What mounting arrangement is used?
Mounting orientation: Horizontal. Check installation clearance and mating geometry for this configuration.
What voltage values and standards apply?
Voltage rating: 5V DC. Keep each value with its stated standard, class and test condition.
What current values and conditions apply?
Rated current: 3A MAX; Rated current: 5A. Keep each value with its stated standard, class and test condition.
