Wire-to-board connector

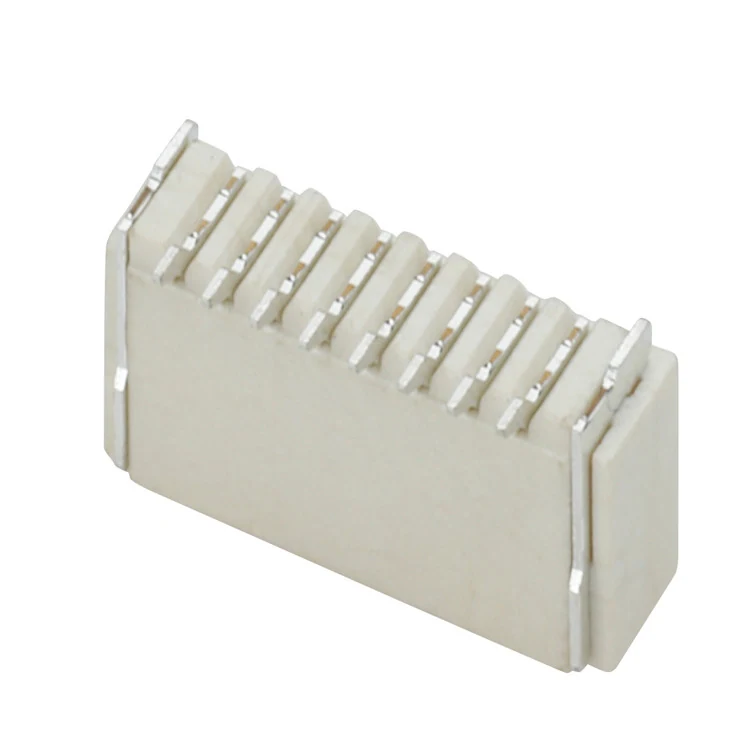

Product image is temporarily unavailableProduct appearance · configuration depends on the selected modelEnlarge image
Wire connectors
Wire-to-board connector · 1 mm · Vertical
Series specification range: Pitch: 1 mm · Mounting orientation: Vertical
Quotation and selection support
- Pitch
- 1 mm
- Mounting orientation
- Vertical
- Rated voltage
- 50V AC DC
- Gender
- Female
Parameters may cover a series or several configurations. Confirm ratings for the selected contact count, dimensions and termination.
Product overview
Wire-to-board connector. Wire-to-board connector. Series configuration parameters: Pitch: 1 mm; Mounting orientation: Vertical; Rated voltage: 50V AC DC.
Discuss this product requirementProduct features
Mounting orientation
Vertical
Rated voltage
50V AC DC
Gender
Female
Temperature range
-25 ~85℃
Product images
Technical specifications
Parameters may cover a series or several configurations. Confirm ratings for the selected contact count, dimensions and termination.
Mechanical & connection
| Gender | Female |
|---|---|
| Pitch | 1 mm |
| Mounting orientation | Vertical |
Electrical & signal
| Rated voltage | 50V AC DC |
|---|---|
| Withstand voltage | 200V AC/minute |
| Contact resistance | 40m Ω |
| Withstand voltage | 200V AC/min |
| Insulation resistance | 800mΩ |
Environmental conditions
| Temperature range | -25 ~85℃ |
|---|---|
| Temperature range | -25-85℃ |
Drawings & technical files
Wire-to-board connector drawing request
After selecting the connection configuration, review its dimensions, pin assignment and installation requirements. Include the required configuration in your request.
Request this product drawingSelection questions
What is the connection pitch?
Pitch: 1 mm. The PCB footprint or mating interface must use the pitch of the selected configuration.
What mounting arrangement is used?
Mounting orientation: Vertical. Check installation clearance and mating geometry for this configuration.
What voltage values and standards apply?
Rated voltage: 50V AC DC; Withstand voltage: 200V AC/minute; Withstand voltage: 200V AC/min. Keep each value with its stated standard, class and test condition.
What is specified for Gender?
Gender: Female.
Confirm the configuration. Get a quote.
Share the model or required specification, quantity and delivery target.
