Pitch
4.2 mm
Wire-to-board connector

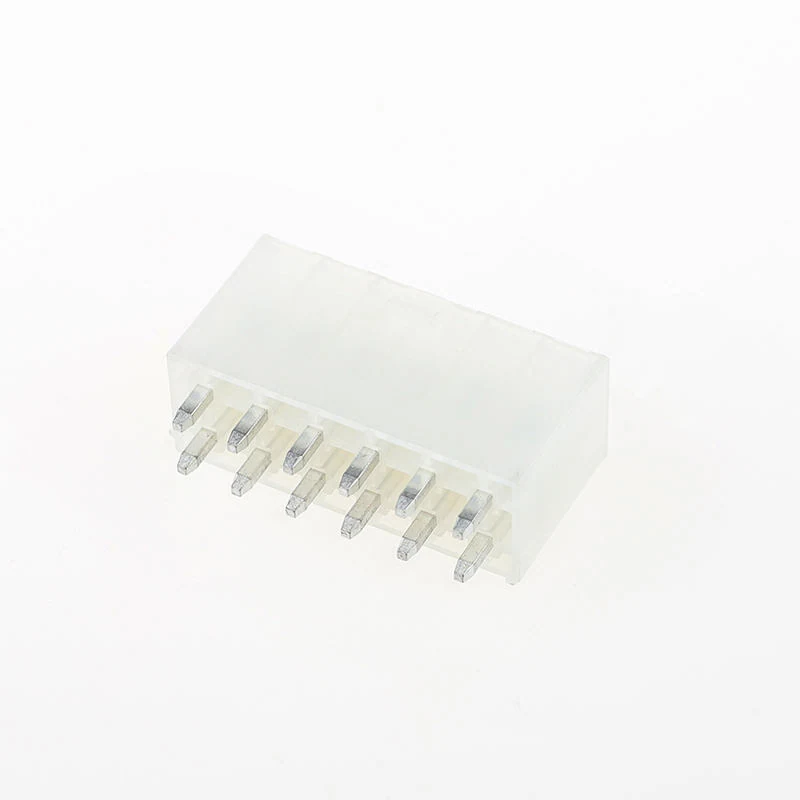

Product image is temporarily unavailableProduct appearance · configuration depends on the selected modelEnlarge image
Wire connectors
Wire-to-board connector · 4.2 mm · Vertical
Series specification range: Pitch: 4.2 mm · Mounting orientation: Vertical
Quotation and selection support
- Pitch
- 4.2 mm
- Mounting orientation
- Vertical
- Termination style
- Solder
- Connection type
- Snap-On
Parameters may cover a series or several configurations. Confirm ratings for the selected contact count, dimensions and termination.
Product overview
Wire-to-board connector. Wire-to-board connector. Series configuration parameters: Pitch: 4.2 mm; Mounting orientation: Vertical; Termination style: Solder.
Discuss this product requirementProduct features
Mounting orientation
Vertical
Termination style
Solder
Connection type
Snap-On
Temperature range
-40 To 85 °C
Product images
Technical specifications
Parameters may cover a series or several configurations. Confirm ratings for the selected contact count, dimensions and termination.
Mechanical & connection
| Durability | High |
|---|---|
| Termination style | Solder |
| Pitch | 4.2 mm |
| Mounting orientation | Vertical |
Materials & finish
| Plating | tin plating |
|---|---|
| Material & Plating | Housing: Nylon, UL94V-0, Halogen-Free Contact Terminal: Copper Alloy Plating: Tin plating (Au plating optional) |
Environmental conditions
| Temperature range | -40 To 85 °C |
|---|
Other specifications
| Connection type | Snap-On |
|---|---|
| Contact | Brass With gold plating Over 50U |
| Soldering Guide | Reflow soldering: Max 260℃, 10s max Hand soldering: 320℃ max within 3s |
Drawings & technical files
Wire-to-board connector drawing request
After selecting the connection configuration, review its dimensions, pin assignment and installation requirements. Include the required configuration in your request.
Request this product drawingSelection questions
What is the connection pitch?
Pitch: 4.2 mm. The PCB footprint or mating interface must use the pitch of the selected configuration.
What mounting arrangement is used?
Mounting orientation: Vertical. Check installation clearance and mating geometry for this configuration.
What termination arrangement is used?
Termination style: Solder. Check installation clearance and mating geometry for this configuration.
What is specified for Connection type?
Connection type: Snap-On.
