Wire-to-board connector

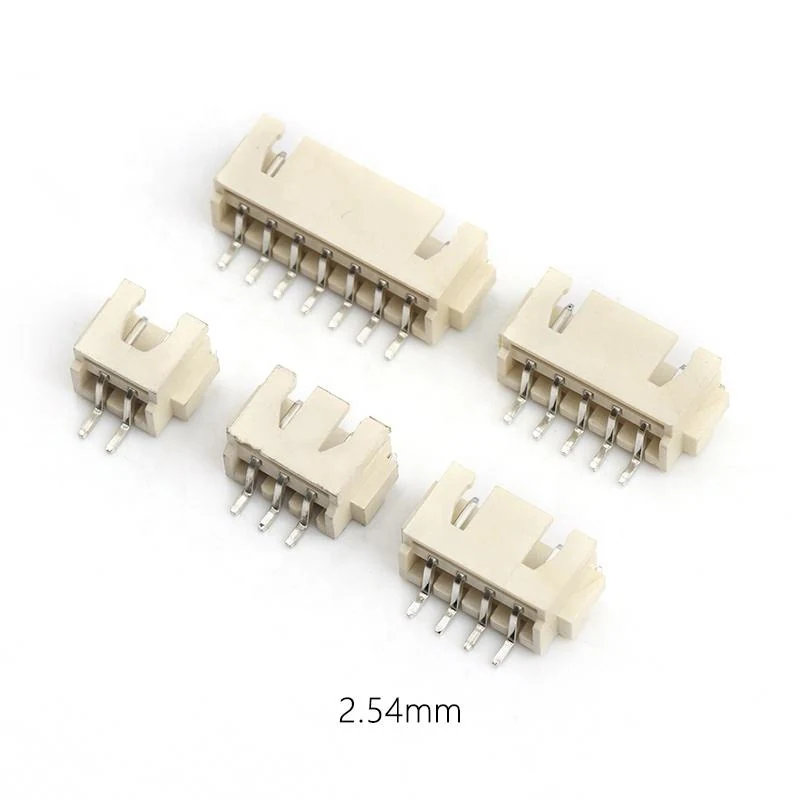

Product image is temporarily unavailableProduct appearance · configuration depends on the selected modelEnlarge image
Wire connectors
Wire-to-board connector · Contact count: 2-16 PIN · Horizontal
Series specification range: Pin number: 2-16 PIN · Mounting orientation: Horizontal
Quotation and selection support
- Pin number
- 2-16 PIN
- Mounting orientation
- Horizontal
- Termination style
- Solder
- Interface Type
- SMD
Parameters may cover a series or several configurations. Confirm ratings for the selected contact count, dimensions and termination.
Product overview
Wire-to-board connector. Wire-to-board connector. Series configuration parameters: Pin number: 2-16 PIN; Mounting orientation: Horizontal; Termination style: Solder.
Discuss this product requirementProduct features
Mounting orientation
Horizontal
Termination style
Solder
Interface Type
SMD
Contact pin material
Phosphor Bronze
Product images
Technical specifications
Parameters may cover a series or several configurations. Confirm ratings for the selected contact count, dimensions and termination.
Mechanical & connection
| Termination style | Solder |
|---|---|
| Durability | High |
| Pin number | 2-16 PIN |
| Mounting orientation | Horizontal |
Electrical & signal
| Contact resistance | 40MΩ Max |
|---|---|
| Rated voltage | 125V AC DC |
| Withstand voltage | 500V AC/min |
Materials & finish
| Contact pin material | Phosphor Bronze |
|---|---|
| Material | Plastic |
Environmental conditions
| Storage temperature | -25°C~+85°C |
|---|
Other specifications
| Interface Type | SMD |
|---|---|
| Contact | Brass With gold plating Over 50U |
Drawings & technical files
Wire-to-board connector drawing request
After selecting the connection configuration, review its dimensions, pin assignment and installation requirements. Include the required configuration in your request.
Request this product drawingSelection questions
How many positions or contacts are specified?
Pin number: 2-16 PIN. Where a range or multiple options are shown, select the required count and pin assignment.
What mounting arrangement is used?
Mounting orientation: Horizontal. Check installation clearance and mating geometry for this configuration.
What termination arrangement is used?
Termination style: Solder. Check installation clearance and mating geometry for this configuration.
What is specified for Interface Type?
Interface Type: SMD.
Confirm the configuration. Get a quote.
Share the model or required specification, quantity and delivery target.
