Pitch
1.25 mm
Wire-to-board connector
Product image is temporarily unavailableProduct appearance · configuration depends on the selected modelEnlarge image
Wire connectors
Wire-to-board connector · 1.25 mm · Contact count: 2-16 PIN · Color Beige
Series specification range: Pitch: 1.25 mm · Pin number: 2-16 PIN
Quotation and selection support
- Pitch
- 1.25 mm
- Pin number
- 2-16 PIN
- Mounting orientation
- Vertical
- Termination style
- Solder
Parameters may cover a series or several configurations. Confirm ratings for the selected contact count, dimensions and termination.
Product overview
Wire-to-board connector. Wire-to-board connector. Series configuration parameters: Pitch: 1.25 mm; Pin number: 2-16 PIN; Mounting orientation: Vertical.
Discuss this product requirementProduct features
Pin number
2-16 PIN
Mounting orientation
Vertical
Termination style
Solder
Color
Beige

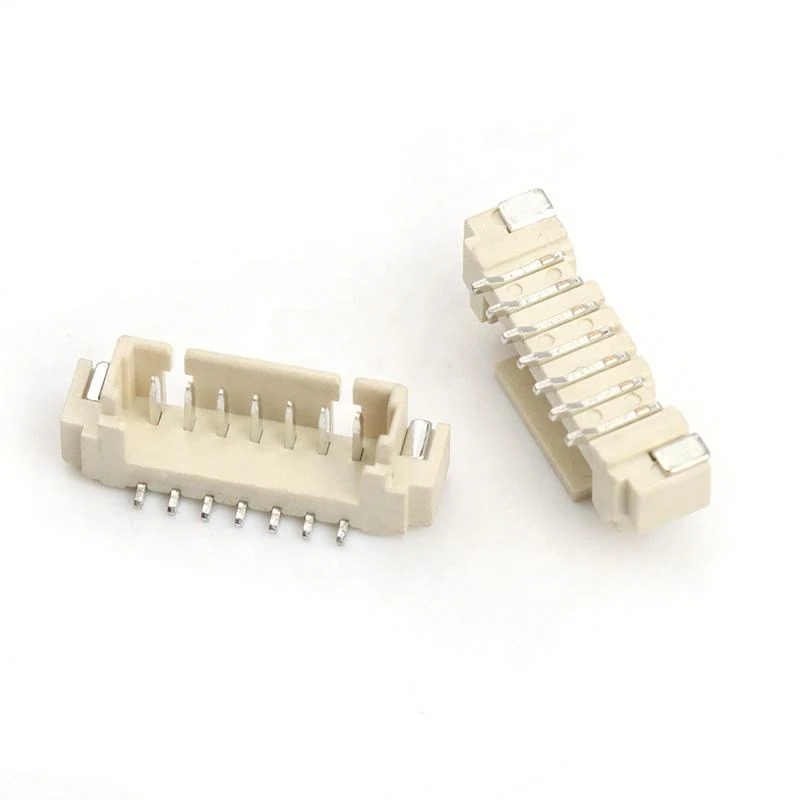

Product images
Technical specifications
Parameters may cover a series or several configurations. Confirm ratings for the selected contact count, dimensions and termination.
Mechanical & connection
| Termination style | Solder |
|---|---|
| Pin number | 2-16 PIN |
| Pitch | 1.25 mm |
| Mounting orientation | Vertical |
Electrical & signal
| Contact resistance | 40MΩ Max |
|---|---|
| Rated voltage | 125V AC DC |
| Withstand voltage | 500V AC/min |
Materials & finish
| Color | Beige |
|---|---|
| Contact pin material | Phosphor Bronze |
Environmental conditions
| Temperature range | -40 To 85 °C |
|---|---|
| Storage temperature | -25°C~+85°C |
Drawings & technical files
Wire-to-board connector drawing request
After selecting the connection configuration, review its dimensions, pin assignment and installation requirements. Include the required configuration in your request.
Request this product drawingSelection questions
What is the connection pitch?
Pitch: 1.25 mm. The PCB footprint or mating interface must use the pitch of the selected configuration.
How many positions or contacts are specified?
Pin number: 2-16 PIN. Where a range or multiple options are shown, select the required count and pin assignment.
What mounting arrangement is used?
Mounting orientation: Vertical. Check installation clearance and mating geometry for this configuration.
What termination arrangement is used?
Termination style: Solder. Check installation clearance and mating geometry for this configuration.
Confirm the configuration. Get a quote.
Share the model or required specification, quantity and delivery target.
