2.54mm Pitch
Wire-to-board connector
Product image is temporarily unavailableProduct appearance · configuration depends on the selected modelEnlarge image
Wire connectors
Wire-to-board connector · 2.54mm Pitch · Contact count: 2-15pin
Series specification range: Pitch: 2.54mm Pitch · Number of positions: 2-15pin
Quotation and selection support
- Pitch
- 2.54mm Pitch
- Number of positions
- 2-15pin
- Mounting type
- Through Hole Type (TH)
- Termination
- Solder Type
Parameters may cover a series or several configurations. Confirm ratings for the selected contact count, dimensions and termination.
Product overview
Wire-to-board connector. Wire-to-board connector. Series configuration parameters: Pitch: 2.54mm Pitch; Number of positions: 2-15pin; Mounting type: Through Hole Type (TH).
Discuss this product requirementProduct features
Number of positions
2-15pin
Mounting type
Through Hole Type (TH)
Termination
Solder Type
Current rating
3.0AMP

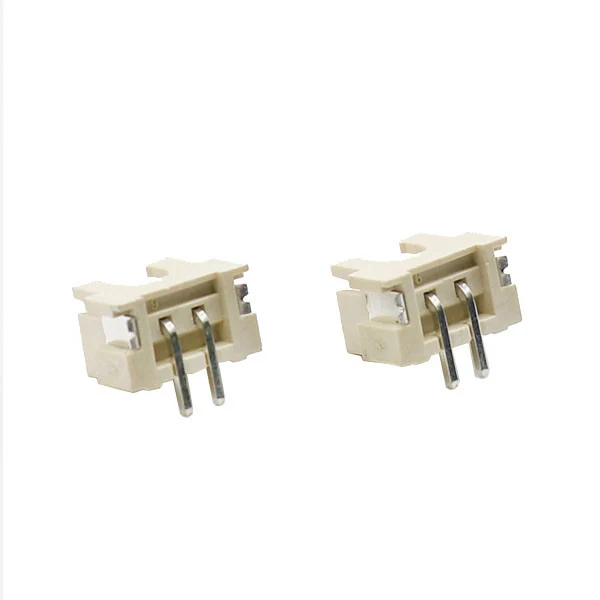

Product images
Technical specifications
Parameters may cover a series or several configurations. Confirm ratings for the selected contact count, dimensions and termination.
Mechanical & connection
| Number of positions | 2-15pin |
|---|---|
| Pitch | 2.54mm Pitch |
| Mounting type | Through Hole Type (TH) |
| Number of positions | 8P |
| Termination | Solder Type |
| Pitch | 2.54mm |
| Gender | Female |
Electrical & signal
| Insulation resistance | 1000m Ohms Min |
|---|---|
| Contact resistance | 20m Ω Max |
| Insulation resistance | 1000m Ω Min |
| Current rating | 3.0AMP |
| Withstand voltage | 250V AC/DC |
Wire & cable
| Applicable Wire | AWG#22～#28 |
|---|
Materials & finish
| Housing material | LCP UL94V-0 |
|---|---|
| Contact material | Brass |
| Insulating material | Polyester PA66 beige/White |
| Contact plating | Au, Sn over Ni |
| Material Flammability Rating | UL94-V2 |
| Contact Finish Thickness | 1U to 30U |
Environmental conditions
| Operating temperature | -40°C to +105°C |
|---|
Other specifications
| Contact | Brass tin plated |
|---|---|
| No. of row | 1 |
Drawings & technical files
Wire-to-board connector drawing request
After selecting the connection configuration, review its dimensions, pin assignment and installation requirements. Include the required configuration in your request.
Request this product drawingSelection questions
What is the connection pitch?
Pitch: 2.54mm Pitch. The PCB footprint or mating interface must use the pitch of the selected configuration.
How many positions or contacts are specified?
Number of positions: 2-15pin. Where a range or multiple options are shown, select the required count and pin assignment.
What mounting arrangement is used?
Mounting type: Through Hole Type (TH). Check installation clearance and mating geometry for this configuration.
What termination arrangement is used?
Termination: Solder Type. Check installation clearance and mating geometry for this configuration.
