Pitch
2.0mm
Wire-to-board connector

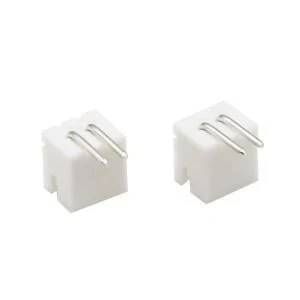

Product image is temporarily unavailableProduct appearance · configuration depends on the selected modelEnlarge image
Wire connectors
Wire-to-board connector · 2.0mm · Contact count: 2-15p · Material PA66
Series specification range: Pitch: 2.0mm · Number of positions: 2-15p
Quotation and selection support
- Pitch
- 2.0mm
- Number of positions
- 2-15p
- Mounting type
- SMT
- Applicable Wire Gauge
- #24-30
Parameters may cover a series or several configurations. Confirm ratings for the selected contact count, dimensions and termination.
Product overview
Wire-to-board connector. Wire-to-board connector. Series configuration parameters: Pitch: 2.0mm; Number of positions: 2-15p; Mounting type: SMT.
Discuss this product requirementProduct features
Number of positions
2-15p
Mounting type
SMT
Applicable Wire Gauge
#24-30
Current rating
2AMP
Product images
Technical specifications
Parameters may cover a series or several configurations. Confirm ratings for the selected contact count, dimensions and termination.
Mechanical & connection
| Pitch | 2.0mm |
|---|---|
| Mounting type | SMT |
| Number of positions | 2-15p |
| Insertion force | 20gf/pin Min |
| Gender | Female |
| Mating Cycles | 5000 Cycles Min |
Electrical & signal
| Current rating | 2AMP |
|---|---|
| Rated current | 2.0A AC |
| Rated voltage | 250V AC/DC |
| Contact resistance | 20m ohms MAX |
| Insulation resistance | 100m ohms min |
| Withstanding Voltage | 800V/1min AC |
Wire & cable
| Applicable Wire Gauge | #24-30 |
|---|
Materials & finish
| Material | PA66 |
|---|---|
| Housing | Nylon66 UL94V-0 |
Environmental conditions
| Operation temperature | -25℃ to +85℃ |
|---|
Other specifications
| Type | Wire To Board |
|---|---|
| Contact | Brass tin plated |
Drawings & technical files
Wire-to-board connector drawing request
After selecting the connection configuration, review its dimensions, pin assignment and installation requirements. Include the required configuration in your request.
Request this product drawingSelection questions
What is the connection pitch?
Pitch: 2.0mm. The PCB footprint or mating interface must use the pitch of the selected configuration.
How many positions or contacts are specified?
Number of positions: 2-15p. Where a range or multiple options are shown, select the required count and pin assignment.
What mounting arrangement is used?
Mounting type: SMT. Check installation clearance and mating geometry for this configuration.
What is specified for Applicable Wire Gauge?
Applicable Wire Gauge: #24-30.
Confirm the configuration. Get a quote.
Share the model or required specification, quantity and delivery target.
