Number of contacts
6-64 Pins
I/O & data connectors
Product image is temporarily unavailableProduct appearance · configuration depends on the selected modelEnlarge image
I/O & data connectors
I/O & data connectors · Contact count: 6-64 Pins · Plating tin plating
Series specification range: Number of contacts: 6-64 Pins · Operating voltage: 60V AC/DC
Quotation and selection support
- Number of contacts
- 6-64 Pins
- Operating voltage
- 60V AC/DC
- Current rating
- 5A
- Material
- Plastic
Parameters may cover a series or several configurations. Confirm ratings for the selected contact count, dimensions and termination.
Product overview
I/O & data connectors. I/O & data connectors. Series configuration parameters: Number of contacts: 6-64 Pins; Operating voltage: 60V AC/DC; Current rating: 5A.
Discuss this product requirementProduct features
Operating voltage
60V AC/DC
Current rating
5A
Material
Plastic
Interface Type
SMD

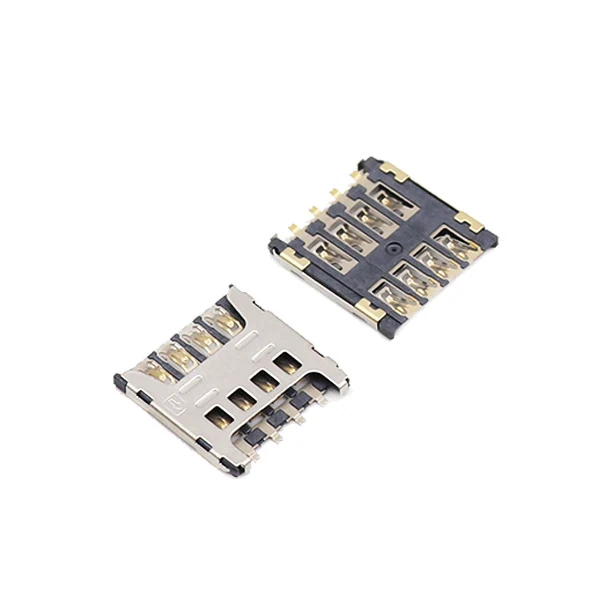

Product images
Technical specifications
Parameters may cover a series or several configurations. Confirm ratings for the selected contact count, dimensions and termination.
Mechanical & connection
| Durability | High |
|---|---|
| Termination style | Solder |
| Number of contacts | 6-64 Pins |
Electrical & signal
| Current rating | 5A |
|---|---|
| Operating voltage | 60V AC/DC |
Materials & finish
| Plating | tin plating |
|---|---|
| Material | Plastic |
| Contact pin material | Phosphor Bronze |
Environmental conditions
| Temperature range | -40 To 85 °C |
|---|
Other specifications
| Interface Type | SMD |
|---|---|
| Contact | Brass With gold plating Over 50U |
Drawings & technical files
I/O & data connectors drawing request
After selecting the connection configuration, review its dimensions, pin assignment and installation requirements. Include the required configuration in your request.
Request this product drawingSelection questions
How many positions or contacts are specified?
Number of contacts: 6-64 Pins. Where a range or multiple options are shown, select the required count and pin assignment.
What voltage values and standards apply?
Operating voltage: 60V AC/DC. Keep each value with its stated standard, class and test condition.
What current values and conditions apply?
Current rating: 5A. Keep each value with its stated standard, class and test condition.
What is specified for Material?
Material: Plastic.
Confirm the configuration. Get a quote.
Share the model or required specification, quantity and delivery target.
