Pitch
3.96 mm (0.156 inch), center-to-center
Pin header connector
Product image is temporarily unavailableProduct appearance · configuration depends on the selected modelEnlarge image
Board & FPC connectors
Pin header connector
Series specification range: Pitch: 3.96 mm (0.156 inch), center-to-center · Mounting type: through hole (DIP) soldering; Straight / right angle optional
Quotation and selection support
- Pitch
- 3.96 mm (0.156 inch), center-to-center
- Mounting type
- through hole (DIP) soldering; Straight / right angle optional
- Termination style
- Solder
- Insulator Housing
- High‑grade PA6T / PBT thermoplastic, UL94 V‑0 flame retardant ; Black standard color
Parameters may cover a series or several configurations. Confirm ratings for the selected contact count, dimensions and termination.
Product overview
Pin header connector. Pin header connector. Series configuration parameters: Pitch: 3.96 mm (0.156 inch), center-to-center; Mounting type: through hole (DIP) soldering; Straight / right angle optional; Termination style: Solder.
Discuss this product requirementProduct features
Mounting type
through hole (DIP) soldering; Straight / right angle optional
Termination style
Solder
Insulator Housing
High‑grade PA6T / PBT thermoplastic, UL94 V‑0 flame retardant ; Black standard color
Interface Type
SMD

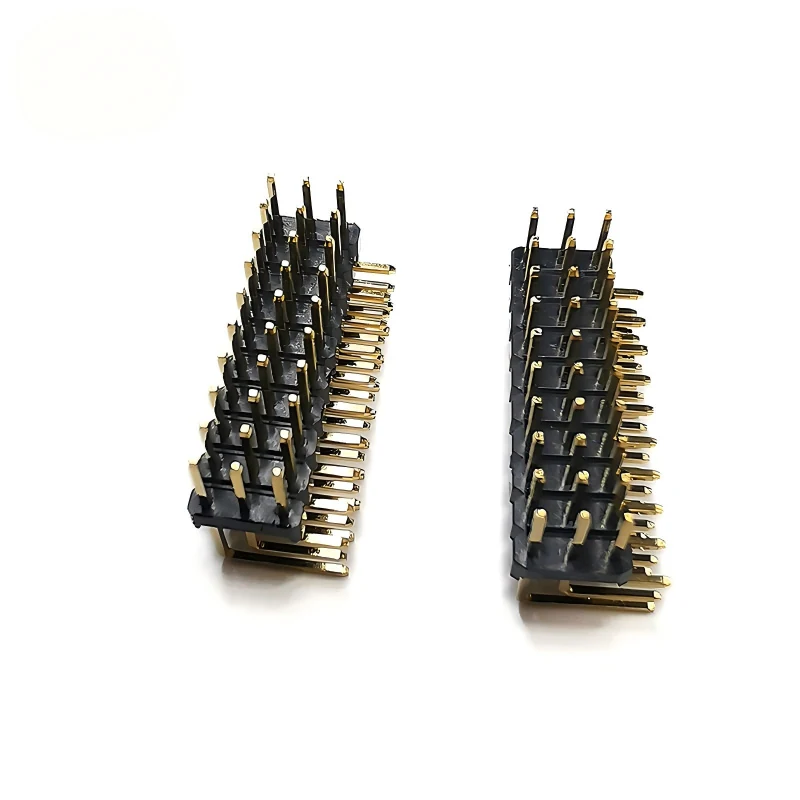

Product images
Technical specifications
Parameters may cover a series or several configurations. Confirm ratings for the selected contact count, dimensions and termination.
Mechanical & connection
| Durability | High |
|---|---|
| Termination style | Solder |
| Pitch | 3.96 mm (0.156 inch), center-to-center |
| Mounting type | through hole (DIP) soldering; Straight / right angle optional |
| Mating Cycles | Minimum 500 cycles |
Electrical & signal
| Current rating | 5A |
|---|---|
| Rated current | 7 A max per contact |
| Rated voltage | 300 V AC |
| Contact resistance | ≤10 mΩ (initial) |
| Insulation resistance | ≥1000 MΩ DC 500 V |
| Withstanding Voltage | 1500 V AC, 1 minute |
Wire & cable
| Pin Cross-section | Square machined pin (custom dimension available) |
|---|
Materials & finish
| Insulator Housing | High‑grade PA6T / PBT thermoplastic, UL94 V‑0 flame retardant ; Black standard color |
|---|---|
| Contact Base Material | High-strength brass/copper alloy, precision CNC turning |
| Plating Base Layer | Nickel under-plating (anti-corrosion barrier) |
| Contact Surface Finish | Standard: Tin over Nickel; Option: Selective/full Gold plating for high‑vibration / long‑life applications |
Environmental conditions
| Operating Temperature Range | -40 °C ~ +120 °C |
|---|
Other specifications
| Interface Type | SMD |
|---|---|
| Contact | Brass With gold plating Over 50U |
| Rows | 3-Row |
| Available Pin Count | Custom pin count per row; 3-40 positions total, OEM acceptable |
| Pin Construction | Precision CNC machined solid pin (not stamped) |
| Mating Connector | Matching 3.96 mm three-row female machined socket |
| Retention Structure | Injection‑molded interlock, pins firmly locked inside housing to avoid pin‑loosening under shock & vibration |
Drawings & technical files
Pin header connector drawing request
After selecting the connection configuration, review its dimensions, pin assignment and installation requirements. Include the required configuration in your request.
Request this product drawingSelection questions
What is the connection pitch?
Pitch: 3.96 mm (0.156 inch), center-to-center. The PCB footprint or mating interface must use the pitch of the selected configuration.
What mounting arrangement is used?
Mounting type: through hole (DIP) soldering; Straight / right angle optional. Check installation clearance and mating geometry for this configuration.
What termination arrangement is used?
Termination style: Solder. Check installation clearance and mating geometry for this configuration.
What is specified for Insulator Housing?
Insulator Housing: High‑grade PA6T / PBT thermoplastic, UL94 V‑0 flame retardant ; Black standard color.
Confirm the configuration. Get a quote.
Share the model or required specification, quantity and delivery target.
