Operating voltage
10V AC(RMS)/DC
SIM card connector
Product image is temporarily unavailableProduct appearance · configuration depends on the selected modelEnlarge image
I/O & data connectors
SIM card connector · Current rating 0.5A
Series specification range: Operating voltage: 10V AC(RMS)/DC · Current rating: 0.5A
Quotation and selection support
- Operating voltage
- 10V AC(RMS)/DC
- Current rating
- 0.5A
- Material
- Plastic
- Plating
- tin plating
Parameters may cover a series or several configurations. Confirm ratings for the selected contact count, dimensions and termination.
Product overview
SIM card connector. SIM card connector. Series configuration parameters: Operating voltage: 10V AC(RMS)/DC; Current rating: 0.5A; Material: Plastic.
Discuss this product requirementProduct features
Current rating
0.5A
Material
Plastic
Plating
tin plating
Contact
Brass With gold plating Over 50U

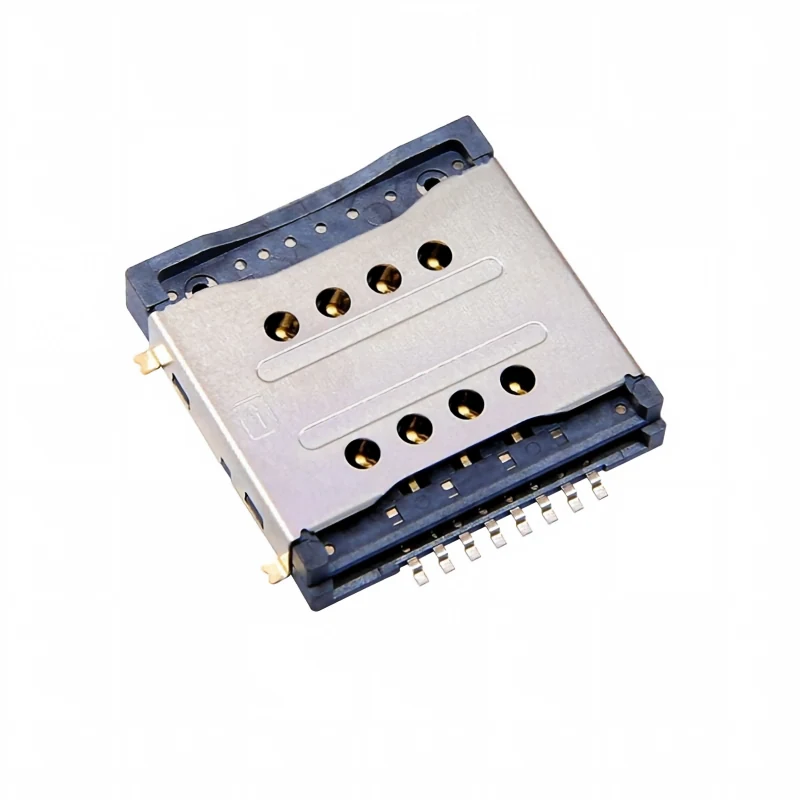

Product images
Technical specifications
Parameters may cover a series or several configurations. Confirm ratings for the selected contact count, dimensions and termination.
Electrical & signal
| Operating voltage | 10V AC(RMS)/DC |
|---|---|
| Current rating | 0.5A |
| Insulation resistance | 1000M ohms min. at 250VDC |
| Withstanding Voltage | 500VAC/1minute |
| Contact resistance | 1000m ohms max |
Materials & finish
| Plating | tin plating |
|---|---|
| Material | Plastic |
| Contact pin material | Phosphor Bronze |
| Material | LCP UL94-V0 |
| Shell | stainless, pickling |
Environmental conditions
| Operating temperature | -25 ℃ - +80 ℃ |
|---|
Other specifications
| Contact | Brass With gold plating Over 50U |
|---|---|
| Contact | phosphor bronze |
| Solder tail | Tin 160u" , selective gold on contact area plating |
Drawings & technical files
SIM card connector drawing request
After selecting the connection configuration, review its dimensions, pin assignment and installation requirements. Include the required configuration in your request.
Request this product drawingSelection questions
What voltage values and standards apply?
Operating voltage: 10V AC(RMS)/DC; Withstanding Voltage: 500VAC/1minute. Keep each value with its stated standard, class and test condition.
What current values and conditions apply?
Current rating: 0.5A. Keep each value with its stated standard, class and test condition.
What is specified for Material?
Material: Plastic.
What is specified for Plating?
Plating: tin plating.
