Pitch
1.0mm
FPC / FFC connector

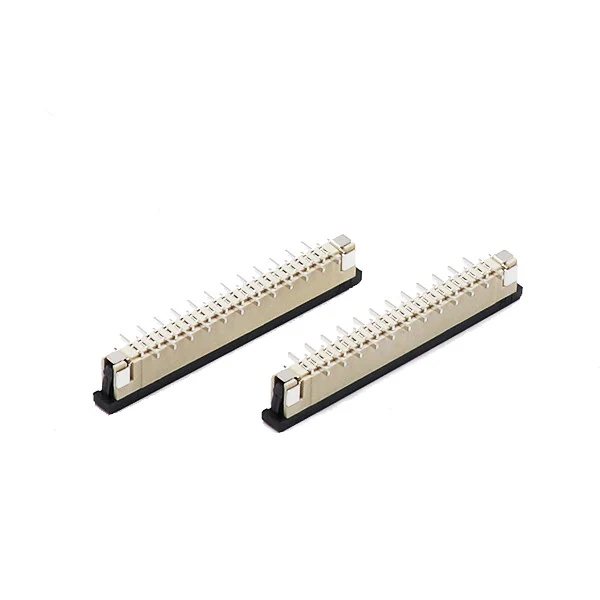

Product image is temporarily unavailableProduct appearance · configuration depends on the selected modelEnlarge image
Board & FPC connectors
FPC / FFC connector · 1.0mm · Contact count: 4-50pin · Voltage rating 50 VAC
Series specification range: Pitch: 1.0mm · Number of positions: 4-50pin
Quotation and selection support
- Pitch
- 1.0mm
- Number of positions
- 4-50pin
- Mounting type
- Vertical / ZIF
- Operation temperature
- -40℃ To +85℃
Parameters may cover a series or several configurations. Confirm ratings for the selected contact count, dimensions and termination.
Product overview
FPC / FFC connector. FPC / FFC connector. Series configuration parameters: Pitch: 1.0mm; Number of positions: 4-50pin; Mounting type: Vertical / ZIF.
Discuss this product requirementProduct features
Number of positions
4-50pin
Mounting type
Vertical / ZIF
Operation temperature
-40℃ To +85℃
Voltage rating
50 VAC
Product images
Technical specifications
Parameters may cover a series or several configurations. Confirm ratings for the selected contact count, dimensions and termination.
Mechanical & connection
| Pitch | 1.0mm |
|---|---|
| Number of positions | 4-50pin |
| Mounting type | Vertical / ZIF |
| Pitch | 0.3mm/0.5mm/0.8mm/1.0mm/1.25mm/2.54mm |
Electrical & signal
| Voltage rating | 50 VAC |
|---|---|
| Withstand voltage | 500V /AC |
| Insulation resistance | 500m ohm Min |
Environmental conditions
| Operation temperature | -40℃ To +85℃ |
|---|---|
| Temperature range | -40℃ To +105℃ |
Other specifications
| Type | Slide Lock |
|---|---|
| Type | DIP/Angle/SMT, Single/Double Row, Top/Bottom Contact |
Drawings & technical files
FPC / FFC connector drawing request
After selecting the connection configuration, review its dimensions, pin assignment and installation requirements. Include the required configuration in your request.
Request this product drawingSelection questions
What is the connection pitch?
Pitch: 1.0mm. The PCB footprint or mating interface must use the pitch of the selected configuration.
How many positions or contacts are specified?
Number of positions: 4-50pin. Where a range or multiple options are shown, select the required count and pin assignment.
What mounting arrangement is used?
Mounting type: Vertical / ZIF. Check installation clearance and mating geometry for this configuration.
What is specified for Operation temperature?
Operation temperature: -40℃ To +85℃.
