Pitch
0.3 mm
FPC / FFC connector
Product image is temporarily unavailableProduct appearance · configuration depends on the selected modelEnlarge image
Board & FPC connectors
FPC / FFC connector · 0.3 mm
Series specification range: Pitch: 0.3 mm · Mated height: 1.0 mm
Quotation and selection support
- Pitch
- 0.3 mm
- Mated height
- 1.0 mm
- Material
- LCP
- Pin Count Range
- 9P-11P-13P-15P-25P-39P-45P-51P
Parameters may cover a series or several configurations. Confirm ratings for the selected contact count, dimensions and termination.
Product overview
FPC / FFC connector. FPC / FFC connector. Series configuration parameters: Pitch: 0.3 mm; Mated height: 1.0 mm; Material: LCP.
Discuss this product requirementProduct features
Mated height
1.0 mm
Material
LCP
Pin Count Range
9P-11P-13P-15P-25P-39P-45P-51P
Rated current
0.3 A per pin (signal)

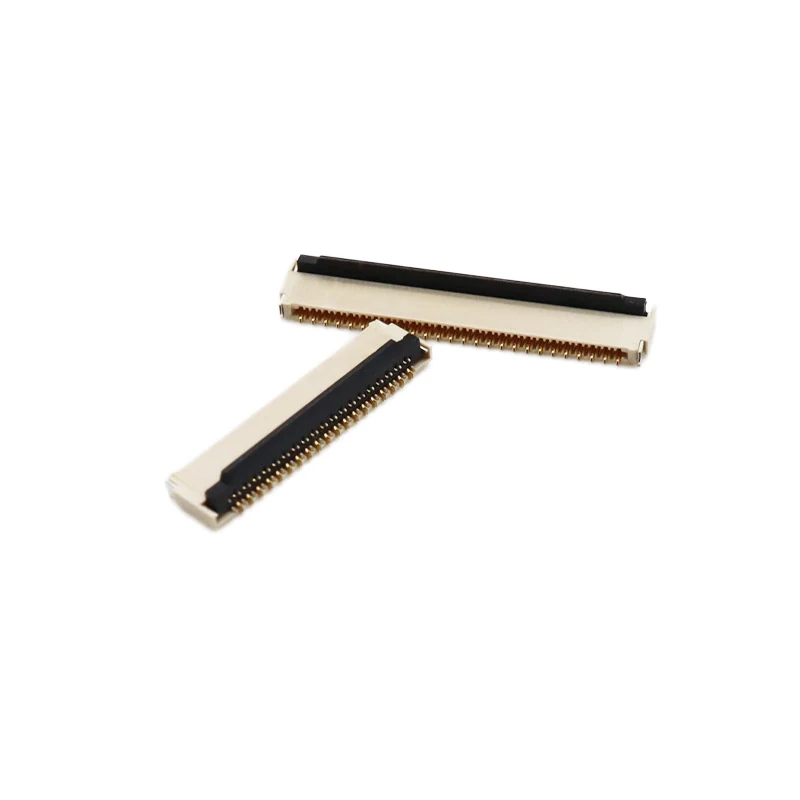

Product images
Technical specifications
Parameters may cover a series or several configurations. Confirm ratings for the selected contact count, dimensions and termination.
Mechanical & connection
| Pitch | 0.3 mm |
|---|---|
| Mated height | 1.0 mm |
| Locking method | ZIF / Non-ZIF Rear-lock Actuator |
| Mating Cycles | 3000 cycles minimum |
| Locking Force | ≥0.1 N per pin |
Electrical & signal
| Rated current | 0.3 A per pin (signal) |
|---|---|
| Rated voltage | 50 V DC |
| Contact resistance | ≤ 40 mΩ (initial) |
| Insulation resistance | ≥ 1000 MΩ |
| Withstand voltage | 250 V AC / 1 min |
Wire & cable
| Applicable FPC Thickness | 0.2 mm |
|---|
Materials & finish
| Material | LCP |
|---|---|
| Terminal material | Phosphor Bronze,gold plating |
| Housing material | LCP, UL94-V0 high-temperature resistant |
| Contact material | Phosphor Bronze |
| Contact plating | gold plating on mating area; tin plated alternative available |
Environmental conditions
| Operating temperature | -40 ℃ ~ +85 ℃ |
|---|
Other specifications
| Type | FFC & FPC Connector |
|---|---|
| Pin Count Range | 9P-11P-13P-15P-25P-39P-45P-51P |
| Vibration Test | 10-2000 Hz, 10G, no disconnection |
| Hand soldering | ≤ 330 ℃, soldering time ≤ 3 s |
Drawings & technical files
FPC / FFC connector drawing request
After selecting the connection configuration, review its dimensions, pin assignment and installation requirements. Include the required configuration in your request.
Request this product drawingSelection questions
What is the connection pitch?
Pitch: 0.3 mm. The PCB footprint or mating interface must use the pitch of the selected configuration.
What is specified for Mated height?
Mated height: 1.0 mm.
What is specified for Material?
Material: LCP.
What is specified for Pin Count Range?
Pin Count Range: 9P-11P-13P-15P-25P-39P-45P-51P.
Confirm the configuration. Get a quote.
Share the model or required specification, quantity and delivery target.
